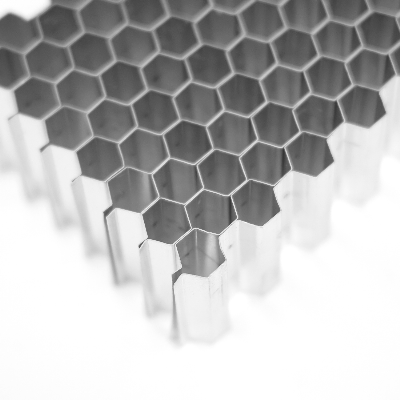

Aluminium Honeycomb Louvre Core for Downlight

Aluminium Honeycomb Louvre Core for DownlightHONGZAN  production lines & Capacity:Alumium honeycomb panels:500,000 sqm annuallyAluminum honeycomb core& courrugatede core:4.5 million sqm annuallyStone marble,granite)& Ceramic honeycomb panel:80,000 sqm annuallyFRP honeycomb panel:100,000 SQM annuallyRock wool Sandwich panel:100,000 sqm annuallySoild aiuminum sheet:300,000 sqm annually1. Product IntroductionBasic Information:The aluminum honeycomb core is composed by multi-layer aluminum foils, honeycomb is formed after fully expanded. Hongzan aluminum honeycomb core has sharp and clear hole surface, and it is suitable for adhering to high grade panels as well as other purposes.   Hongzan aluminum honeycomb meets aerospace grade, is a lightweight endurable core materials which offers superior strength and corrosion resistance over commercial grade aluminum honeycomb. Meet all the requirements of MIL-C-7438. Specification:Hongzan produce mainly two types of aluminum honeycomb core: Micro-aperture aluminum core and Normal aluminum core. Supplying forms: For normal aluminum core: unexpanded block form and is stretched out / expanded  into a sheet on-site.For micro-aperture aluminum core (cell size is smaller than 2.5mm): expanded formAluminum Foil MaterialA1100, A3003, A5052, A3104Avaliable Foil Thickness0.04-0.15 mmNode1-20 mmDiameter/Cell Size1.7-35 mmCore Thickness/Cutting Height3.5-200mmShaperectangle, triangle, rhombus, trapezoidRegular Surface TreatmentPowder Coating, Anodized, Electrophoreses, etc.Applicationsnetwork for traffic guidance light, crystal lattice for electric heater, laser-beam cutter panel for testile machine, separator for illmination, guidance for water and gas purification, cooling agent carrier for air conditioner, refrigerator and air purification, shielding screen, heat insulation screen, etc.Customerization(MTM)Yes (color, surface texture, size, shape, pattern, etc.)Technical Data:* Regular Sizes and Max. Expaned Sizes of Aluminum Honeycomb Core  Nodea=4a=5a=6a=7.5a=10a=12a=15a=20Cell Size (inch)1/41/33/81/23/44/511Max Sizes (Length * Width) (mm) 1800*31001800*40001800*46001800*60001800*75001800*90001800*120001800*15000Model of Aluminum Foil Thickness (mm)0.04, 0.060.04, 0.060.04, 0.060.04 - 0.060.04 - 0.060.04 - 0.060.04 - 0.060.04 - 0.06* Flat Wise Compressive Strength & Shear Strength  Density (kg/m³) Aluminum Foil Thickness / Node (mm)Mechanical Features under Room Temperature (Mpa)Average Compressive StrengthLongitudinal Sheer StrengthTransverse Shear Strength270.03 / 50.530.440.24310.04 / 50.660.530.30330.03 / 40.730.580.33390.04 / 40.980.750.43410.05 / 51.070.80.47440.03 / 31.180.890.52490.06 / 51.431.030.60520.04 / 31.601.150.67530.05 / 4 1.651.180.69610.06 / 42.071.480.83660.03 / 22.391.71.0670.08 / 52.451.741.02680.05 / 32.501.781.04770.04 / 23.102.181.252. ApplicationAluminum Honeycomb Core is widely used in electronic and industrial field which is including as below. Crystal lattice for electric heaterLaser-beam cutter panel for textile machineNetwork for traffic guidance lightSeparator for illuminationGuidance for water and gas purificationCooling agent carrier for air conditionerRefrigerator and air purificationScreen printing panelShielding screenHeat insulation screen3. Package DetailsHongzan will use standard export packages--wooden crate which will largely protect the products well during land/sea/air/train transportation. Customized package requirements are available.4. CerfiticatesHongzan has obtained international recognized certificates and test reports for aluminum honeycomb core related to Fire rate, sound insulation, and so on, E.G.: 1), ISO 9001:2008;2), A class fire rate by Lloyd's ( Marine Association) ; 3), BS 476 ,475 by TUV PSD Singapore;4), EN13501-1 by ITS;5), ASTM by ITS.  FAQ   Q & A for concerning:  1. Do you provide free samples ?       yes, we do supply sample for free.  2. Do you offer best price?     We are manufacturer with our own export right, we always provide our best price with high quality products.  3. How can you ansure your quality is reliable?      We have our QA system and pass ISO 9001:2008; , besides, our products passed BS, IMO, CE EN, ASTM tests. We can supply reports, certificates, You are also welcome to send QC team to do the inspection.  4. How about your factory's productivity ability?     Our production capacity is 50000 square meter per month.5.  Can we have video factory tour and live show of your factory during this pandemic time ?     Dear,  of course! You are welcome to set up a life video visitng of our factory ! 5. Contact DetailsSylvia TangMobile: 0086 139 2319 2421  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
