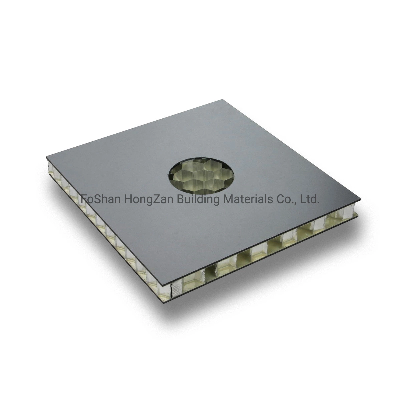

Aluminum Honeycomb Panel Aluminum Composite Panel for Wall Panel Facades Cladding

Aluminum Honeycomb Panel for Wall PanelSMART MATERIALS, LEED SOLUTIONS !!!What Can Aluminum Honeycomb Panel Be Used For?Architectural Building Cladding and decoration, wall panelArchitectural Rainscreen Facades and canopiesLightweight interior architectural panelsLift and elevator flooring, walls & PartitionsAerospace, Marine & Transport Flooring, Walls & PartitionsSilk Screen Printing Tables and billboards or direction boardsFurniture and tables.CNC Vacuum BasesLightweight Floors, Walls, Ceilings, roofings, etcSpecial Purpose Panel DesignWhat Are The Advantages of Honeycomb Panel ? Ultra-Light weightHigh rigid, High impact strengthExcellent fire rated (Meet A2 Standard)Excellent Corrosion ResistanceHigh wind resistantExcellent DurabilitySuper flatness and resistant surfaceEasy to transport & installRecyclable and environment-friendlyMinimal materials cost   PVDF or Polyester coating finish aluminum, anodized Aluminum, stainless steel or other special metal face sheets are for maximum strength and anti-corrosion performance as well as decorative applications.Aluminium or other metal face sheets are available in a range of thicknesses from 0.3mm up to 3mm  as per design requirmentsPanels can be produced in different thicknesses and colors to meet design requirements and decoration purpose.Aluminum faced panels are chemically cleaned:Suitable for painting or the application of decorative laminatesBrushed and anodized aluminum finishes are also availableAluminum honeycomb cell sizes are selectable.Wide selection of colors including RAL colors, metallic colors, stone/marble/granite colors and wooden colors.  How Do We Process Our Products?What Projects We did?  Structure of Our Aluminum Honeycomb PanelCommon Specifications:MaterialAluminum Alloy (3003/5052, etc.)Regular Size (W*L)1220 * 2440 / 3000 mmMax.Size(W*L*T)2000 * 12000 * 300 mmRegular Thickness10/12/15/20/25 mmSelectable Thickness5-300 mmRegular Surface TreatmentPVDF,PE,Powder Coating, Anodized, etc.PerforationcustomizableApplicationsWall cladding(exterior & interior), ceiling & flooring, cleanroom, partitions, ship hull, vehicles, tunnel, etc.Customerization(MTM)Yes (color, surface texture, size, shape, pattern, etc.)OEMAvailableSuggestion: 1.For interior wall:Surface - PE coating;Thick range - from 8mm to 20mm (facing skin:1.0mm;Back skin:0.7mm)2.For exterior wall:Surface - PVDF coating;Most popular thick:15mm, 18mm, 25mm,30mm (facing skin:1.0mm;Back skin:0.7mm)Standard Installing System for Aluminum Honeycomb Panel:(customized installation systems are available)Type A: Standard seaming installing method of outdoor for aluminum honeycomb panelType B: Standard seamless installing method of outdoor for aluminum honeycomb panelTechnical Data / Test ReportTechnical Data Of HONGZAN Honeycomb PanelsTesting sample thickness:20mm / 25mm ( 1.0+1.0) : Thickness20mm25mmFront aluminium panel1.00mmBack aluminium panel1.00mmWeight (kg/m2)7.47.8Mechanical Property of composite panel and panel  Inertia Moment           I (cm4/m)19.8531.67Section Modulus       W (cm3/m)1924Rigidity of Composite panel      E.I (KN cm2/m)1390002217000Aluminum profile panelAA 5754A(ALMg3)Modulus of Elasticity (N/mm2)70000Tensile Strength of facing panel (N/mm2)Rm ≥ 2200.2% Yield Stress(N/mm2)Rp0.2 ≥ 130Extensibility   (EN485-2:1194)A50 ≥ 8Aluminum linear thermal expansion2.4mm/m when the temperature difference is 100ºCSurface decoration layerPVDF Spray Baking finishGlossiness   (original Data)30-40%Hardness of pencilHB-FCore of Honeycomb  Size of honeycomb1/4''(6.3mm)DensityAbout 80kg/m3Compression strength  (MILL-STD-401)4N/mm2Fuction Of Acoustics  Data of sound absorption               As0.05Factor of sound insulation     According to ISO717-RW2325Fuction Of Heating  Data of  Heat Conduction      λ*(w/m2k)2.252.7Data of Thermal Insulation    R(1/m)     (m2k/w)0.00890.0093Data of Heat Transmission   U(k)       (w/m2k)5.595.575  Production lines & Capacity:Aluminum honeycomb panels500,000 sqm annuallyAluminum honeycomb core & corrugated core4.5 million sqm annuallyStone (marble,granite) & Porcelain honeycomb panel80,000 sqm annuallyFRP honeycomb panel100,000 sqm annuallyRock wool Sandwich panel100,000 sqm annuallySolid aluminum sheet300,0000 sqm annuallyWhat Certificates We Obtained ?Hongzan has obtained international recognized certificates and test reports for aluminum honeycomb panel related to Fire rate, sound insulation, and so on, E.G.:ISO 9001:2008 by BVMarine Certificates (Fire Rated A2) by LLOYDSBS 476 ,475 by TUV PSD SingaporeEN13501-1 by ITSASTM by ITSFor Any Enquiry or Further Information, Please Contact Us At: Sylvia Tang    Your professional supplier of honeycomb materials    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
