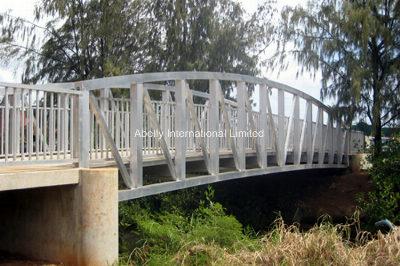

Aluminum Gangway/Pedestrians R System

Company ProfileAbelly Aluminum Gangway/Pedestrians Abelly is the expert of aluminum bridge, we supply the aluminum solution for different environments. now we have 4 kinds of different aluminum bridge: Product ParametersR system•System for small spans•Simple construction ("girder bridge" with girder grillage)•Also available without railings or only with single-sided railingas ramp, board-walk or floating jetty.•Area of application: Foot bridges up to 12m length•Introduced: 2008R system  L system •Material-optimized system for small and medium spans •Trough bridge with side trussed girders •Without separate bottom flange; the walkway assumes this task •Area of application: Bridges from 5 to 22m length •Introduced: 1998          L system SL system •Material-optimized system for medium spans •Trough bridge with side trussed girders •Economical thanks to the use of bolted joints •Area of application: Bridges from 15 to 33m length •Introduced: 2010           SL system  B system •System for large spans or wide bridges (>3m) •Trough bridge with triaxial trussed girders •Widths up to 8m have already been realized •Area of application: Bridges from 25 to 80m length •Introduced: 2007 B system        for details, pls send the drawings for further analysis. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
