Tecon Table Formwork for Slab Concrete Construction

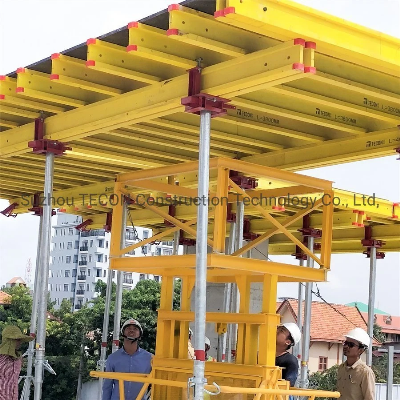

TECON Table Formwork for Slab Concrete ConstructionBrief IntroductionTECON Table Formwork for Slab Concrete Construction(Slab table formwork)is one of the most efficient slab shuttering solution, especially for large area and multiple floors structure. Slab table can be quickly moved into the next floor by single crane lift due to pre-assembled tables combined with H20 timber beam, plywood and heavy duty prop etc.Techinical Specification- Pre-assembled slab tables with customized sizes, and biggest size up to 3*6m- Slab thicknesses up to 50 cm; and bigger slab thicknesses or dimensions with additional support- Clearance storey height up to 5.5 m- Horizontal transportation by transporting trolley and vertical transportation from different floors by crane with lifting fork- Can be used with TECON Shoring Tower ST60 for much bigger height up to 20mFeatures- Big shuttering area tables increase site efficiency greatly- Ready-to-use table units avoid repeated assembly and dismantle fromevery floor-  Easy and fast to next position via trolley or tower crane- Fully compatible with other timber beam formwork with its H20 timber beam, plywood and steel propsSimilar formworkFor where have slabs or ceillingsOur Service* ConsultancyOffer you a general idea of formwork & scaffold among TECON various systems, to fit your project demand.* Technical PlanningCustomized forming & shoring solution proposal according to your structural drawing by Auto-cad.* Order DeliveryFrom fabrication to loading, fast to your site with standard export packages.* On-site SupervisionShop drawing, user manual, and even send our supervisor to your site for training and supervision.Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements.TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases.Pre-shipment inspection will be also supported according to clients' request or by third-party.Company InformationAs the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world.Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development. At TECON, you will experience excellent one-stop service throughojut the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these. We have a wide range of products line which covers wall formwork, slab formwork, column formwork, climbing formwork, slip formwork, girder, plywood, shoring prop, and all kinds of scaffoldings.They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects. TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service. TECON, for those who build./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
