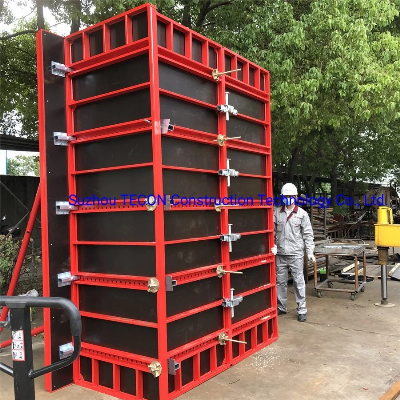

Tecon Competitive Price Steel Frame Modular Column Wall Formwork

TECON Competitive Price Steel Frame Modular Column Wall FormworkBrief IntroductionTECON Competitive Price Steel Frame Modular Column Wall Formwork(TECON HETO FORMWORK) is a steel frame panel system lined with 12mm birch film-faced-plywood, universal and high efficient for walls in medium to big scale projects under crane assistance. The alignment coupler for all panel connections ensures high-speed site assembly.Techinical Specification- Powder coated or hot-dip galvanization finishing, lined with 12mm TECON-Form Birch Panels sizes- Panel Width: 1000mm/750mm/600mm/350mm- Panel Height: 3000mm/2400mm/1800mm/1200mm/600mm- Panel weight: around 40kg/sqm- Permitted fresh concrete pressure: 80KN/sqm Column size- Up to 850x850mm size column without tie rod- Up to 6m height column without vertical walingFeature- Easy to connect.- Adjustable panel.- Large-area shuttering.- Easy and fast operations.- Adjustable alignment coupler.- Complete piece birch plywood and replaceable.Similar formwork       For where have slabs or ceillingsOur Service* ConsultancyOffer you a general idea of formwork & scaffold among TECON various systems, to fit your project demand.* Technical PlanningCustomized forming & shoring solution proposal according to your structural drawing by Auto-cad.* Order DeliveryFrom fabrication to loading, fast to your site with standard export packages.* On-site SupervisionShop drawing, user manual, and even send our supervisor to your site for training and supervision.Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements.TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases.Pre-shipment inspection will be also supported according to clients' request or by third-party.Company InformationAs the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world.Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development. At TECON, you will experience excellent one-stop service throughojut the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these. We have a wide range of products line which covers wall formwork, slab formwork, column formwork, climbing formwork, slip formwork, girder, plywood, shoring prop, and all kinds of scaffoldings.They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects. TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service. TECON, for those who build./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
