Prefab Engineered Steel Structure Warehouse Cheap Workshop

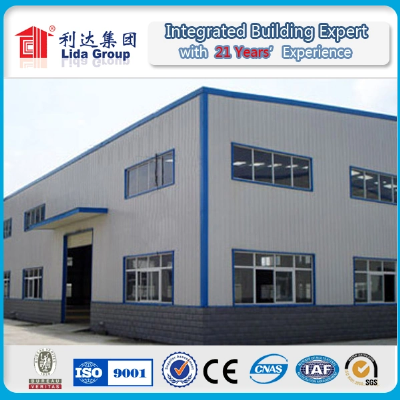

Description:Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors. Light steel structure building is widely used in warehouses, workshops, large factories, and so on.Materials:1. The main frame (columns and beams) is made of welded H-style steel.2. The columns are connected with the foundation by pre-embedding anchor bolt.3. The beams and columns, beams and beams are connected with high intensity bolts.4. The envelop construction net is made of cold form C-style purlins.5. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.6. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminium, sandwich panel and so on.Characteristics:1. Wide span: Single span or multiple spans, the max span is 36m without middle column.2. Low cost: Unit price range from USD35/m2 to USD100/m2 according to customer's request.3. Fast construction and easy installation.4. Long using life: Up to 50 years.5. Others: Environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.  main steel framesteel materialsteel Q235/Q345 process and paintedintensive boltgrade 10.9anchor boltM24,steel Q235, processordinary boltgalvanized boltbracecross support20 round steel bar Q235, process and paintedangle brace  L50*4 angle steel Q235, process and paintedbrace between columnsL90*6, Q235, process and paintedbrace between purlins12 round steel bar Q235, process and paintedtie barΦ89*3.0   steel pipe Q235, process and paintedroofout-roof   paneltype V950, 100mm rock wool sandwich panel, outside steel plate 0.7mm/RAL7024, inside steel plate 0.5mm/RAL9010sky-light1.2mm glass fiber reinforced plastics+8mm hollow sunshine plateventilatorsize 1.5x1.5mfittingsglass adhesive, self-tapping screw and so onroof purlinC250*75*20*2.5 galvanizededge covermade of color steel sheet thickness 0.5mmwallouter wall panel  type V950, 100mm rock wool sandwich panel, outside steel plate 0.6mm/RAL7024, inside steel plate 0.5mm/RAL9010interior panel of parapet wall0.6mm color steel platewall purlinC180*70*20*2.5 galvanizedfittingsglass adhesive, self-tapping screw and so onrolling up doorrolling up door, shutter thick 10-15mmsingle door windowsalu windows with double glazing 4-12-4mmedge covermade of color steel sheet thickness 0.5mmgutter and rainspoutinterior gutter3mm galvanized steel platerainspout160mm pvc pipelabor coststeel frame loadinglabor costwall/roof panel loadinglabot costinland transport6x40ft OT and 7x40ft HQ containers  About us:With 29 years experiences, Our Weifang Henglida Steel Structure Co.,Ltd( Lida Group)  is one of the biggest manufacturers in China for the Prefabricated building, Flatpack Container , Site temporary camp building, Steel Structure building . Lida Group has achieved ISO9001, ISO14001, OHSAS18001, and CE certification (EN1090). We already have good experiences to work with Top Ranked construction companies, such as Salini Italy, Spain Tecnicas, Germany schlumberger, China state construction, China Railway construction and so on, we sincerely hope to work with you in the near future.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
