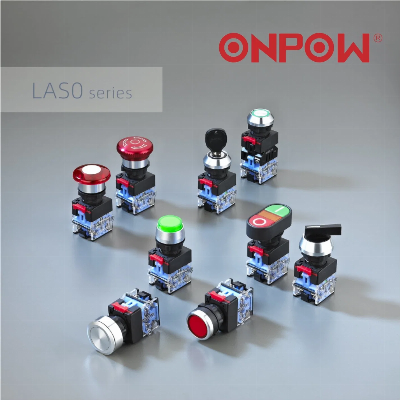

Onpow 22mm/30mm High Current Switch (LAS0-K seires)

Product Specialty 1.    Oversized buttons,beautiful and comfortable operation. 2.    Low flat head,button switch head under 3mm. 3.    Inside symbol type of the head,which can engraved symbol and decided direction. 4.    The metal head of the push button and emergency switch,it's beautiful and upper grade. 5.    The installation is efficient and convenient,the structure is firm and reliable. 6.    Wide varieties and varias types to choose.   Applied Range 1.    Rail transportation industry. 2.    Machine tool industry. 3.    Engineering machinetry. 4.    Ship industry. 5.    Oil industry. 6.    Power transmission and distribution. Part number: LAS0-K30-11TSD/Head Color Diameter: 30mm Contact configuration: 1NO1NC(11) / 2NO2NC(22) / 3NO3NC(33) / 4NO4NC(44)                        If you need "slow motion structure",please add M in front of the model number. Front shape: Push Lock Switch with Key Dimension of head: 40mm Operation type: Push-Lock & Turn-Reset Head color:Red(R) ;Green(G) IP degree: IP40 / IP65(P) Approval:CE,CCC,ROHS   Switch Ratings Rated Insulation VoltageUi:500VThermal CurrentLth:10ARated Voltage24V48V110V220V380V500VOperationcurrentAC50/60 HZAC-12 resistive load and semiconductor load contral10A 10A6A  AC-15 electronic load control(>72VA)10A 6A3A1.8A1.4ADCDC-12 resistive load and semiconductor load contral8A4A2.2A1.1A  DC-13 electronic load control4A2A1.1A0.6A      Lamp ratings Lamp typeAC LED LampRated voltageAC/DC 6VAC/DC 12VAC/DC 110VAC/DC 220VAC/DC 380VAC/DC 24VAC 100VAC 200VAC 380VRated Current≤20mACovers colorRed,Green,Yellow,Orange,Blue,WhiteLifeAbout  40,000 hoursNote:1.the lamp contains a current-limiting resistor inside and doesn't need external connection. 2.The standard is using AC/DC LED lamp,dual-color LED lamp and other voltages can be customized.     Specifications Operating Temperature-25ºC~+55ºC(no freezing)Keep the air flowing around the illuminated pushbuttonOperating Humidity48~85%RH(no condensation)Contact Resistance≤50mΩInsulation Resistance≥100mΩDielectric Strength3000V,AC 50HzVibration Rasistance50Hz,amplitude 1.0mmP-PShock Rasistance≥10gLifeMechnicalMomentary Type≥1,000,000timesAlternate and Selector Type≥500,000timesKey-lock and EmergencyType≥200,000timesElectrical≥50, 000timesTerminalThread connection,diameter of welded wire:2*1.5mm maxConnecting link:6.3*0.8mmOperating Force800gf-2200gf,according to the quantity of switch unitsOperating Travelabout 3.8mm(pushbutton)    ModelABCRemarksNormal Type Φ30.5≥50≥351.    Unit:mm2.    B and C both are the minimum size.Selector Type&Key-lock Type≥50≥35Mushroom≥50≥42Big Mushroom≥70≥70Mounting hole Dimension   · Pls contact us for BEST PRICE!!    Also we can meet your special requirements:         1. Laser engraving for different symbol or Illuminated symbol.        2. Different metal body color can be made, like Red, Green,   Yellow, Blue, White, Orang     e, Golden.         3.Special design for big diameter up to 35mm or small diameter to 8mm.        4. We accept different terms of payment, like PAYPAL, ESCROW and so on.          5.Other special requirement pls contact Mr. Puma (International trade manager)   Puma chen    ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.       Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619     Website: hongbocn.en.made-in-china.com     http://hongbocn.en.made-in-china.com       Work time: 8:00-11:30  12:30-17:00(Except Sunday) /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
