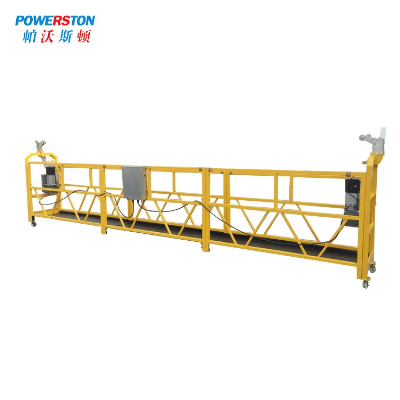

Hot Selling Zlp500/Zlp630/Zlp800/Zlp1000 Gondola Cradle Lifting Platform

Compared with traditional scaffoldings, suspended platform is scientific in design, rational in structure. It is convenient to operate, safe and reliable, and high efficiency. It is widely used for exterior construction of high-rise building, bridge construction, chimney construction, window cleaning, inspection and maintenance, curtain wall installation and façade decoration and so on.Suspended platform is mainly composed of suspension mechanism system, lifting platform, hoist motors, safety locks, electric control system, working steel wire ropes, safe wire ropes, counter weights, hanging weights and other accessories and connecting parts. Rated load of the platform is 500kg to 1000kg, the working height and voltage can be adjusted to your need, Lifting speed is can be 8.3m/min to  9.6m/min. The suspension mechanism system can be adjusted to complicated buildings in different height. The standard dimension of platform is 2m*3 sections or 2.5m* 3 sections in length, 0.69m in width, and 1.3m in height, also size can be customized according to your need.Three kinds of materials optional: steel painted, steel galvanized, and aluminum alloy. Product specificationsModelZLP500ZLP630ZLP800ZLP1000Height100M/150M100M/150M100M/150M100M/150MRated Load(KG)5006308001000Lifting Speed8.3M/MIN8.3M/MIN8.3M/MIN8.3M/MINMotor Power2*1.5KW 50HZ/60HZ2*1.5KW 50HZ/60HZ2*1.8KW 50HZ/60HZ2*2.2KW 50HZ/60HZSize:L*W*H(MM)(2000*2)*690*1300(2000*3)*690*1300(2500*3)*690*1300(2500*3)*690*1300Diameter Of Steel Rope8.3MM8.3MM8.6MM8.6MMHoist MotorLTD6.3LTD6.3LTD8.0LTD10Counter Weight(KG) Optional25*30PCS25*36PCS25*40PCS25*44PCSVoltage220V/380V/415V220V/380V/415V220V/380V/415V220V/380V/415V  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
