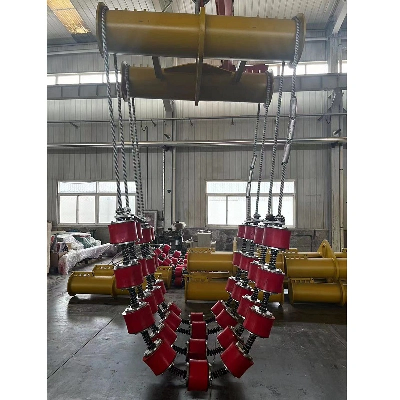

Pipe Lifting Machine and Roller Cradle for Pipeline Equipment

  Product DescriptionPipeline Roller Cradle is a special hoisting and auxiliary walking equipment used in the lower ditch operation after the completion of pipeline welding.Product Features 1. Reasonable design, light weight, strong lifting capacity, safe and reliable 2. The pipe weight isevenly distributed on the circumference of the wire rope roller 3. Roller bearing adopts bearings with large radial and axial bearing capacity, with sealing, waterproof and sand control functions 4. The roller can move flexibly and freely to ensure the smooth lower groove of the pipeline5. Outside the roller is a special polyurethane hanging wheel with good adhesion and high abrasion resistance, which can effectively protect the anti-corrosion layer of the pipeline.Product Parameters Model Applicable pipe range(mm) Temperature of surroundings(ºC) Total rollers Wire rope diameter(mm) Max lifting capacity(kg) Dimension(m) Weight (kg) HG6-12 Φ152~305 -30~+70 28 18 8000 0.5*0.5*0.5 450 HG12-24 Φ305~610 -30~+70 28 22 13000 0.7*0.7*0.8 590 HG24-36 Φ610~914 -30~+70 28 22 35000 1.0*1.0*0.8 1500 HG36-48 Φ914~1219 -30~+70 28 30 45000 1.4*1.4*1.0 2200 HG48-60 Φ1219~1524 -30~+70 28 30 55000 1.6*1.4*1.0 2900 Detailed PhotosCompany ProfileWincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.Our Services & Strength We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
