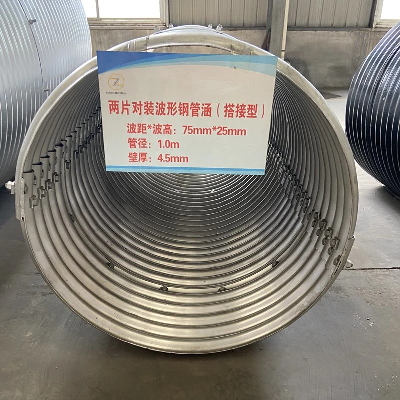

Nestable Semicircular Corrugated Metal Pipe/Corrugated Metal Culvert

1. Corrugated Metal Culvert Advantages and ApplicationsNestable corrugated culvert pipe offers a fast and economical solution to contractors and owners who require a strong casing to place around an already installed utility line. This can be done easily without disrupting the line to be encased. Also can be used in the petroleum, chemical protection shell pipe, and infrastructure construction.There are two standard methods used in attaching the half-round pipe segments together bolting and flanges. Nesting, a shipping technique developed in the 1930's, was devised to eliminate problems for overseas shipment. It provides an economical solution to conserve shipping space.Corrugated Metal Culvert include:Quality      Nestable corrugated culvert pipe are manufactured to meet the international qualityStrength     Corrugated metal Pipe have great strength in proportion to their weightFlexible      Flexible structures can absorb impact without breaking or disjointingDurability    The use of high quality 600g/m2 galvanized steelTransport    The"nested" arrangement provides for maximum freight economy.Assembly    The quick and easy assembly of Nestable corrugated culvert pipe saves both time and installation costs.Economy    Low material and installation costs ensure Nestable corrugated metal pipes are extremely price competitive.ServiceExperienced YiZhuo engineers are availabe to provide asistance as and when required.2. Assembly:The technical data included in this brochure is applicable to flanged type pipe and bolting type pipe both. Revelant data on the other types are available on request. Corrugated metal culvert is made from galvanized steel sheets with corrugations 68mm width by 13mm depth and corrugations 75mm width by 25mm depth. The 68X13mm in 20 corrugations with an effective laying length 1360mm. The sheets in thickness from 1.6~4.2mm. The 75X25mm corrugations, if the sheet thickness is smaller than 3mm, it is in 16 corrugations with an effective laying length 1200mm, if the sheet thickness is bigger than 3mm, it is in 17 corrugations with an effective laying length 1275mm. Field assembley is accomplished by bolting the sections together at the flange with M12X30 andM12X40 galvanized nuts and bolts.Specification:    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
