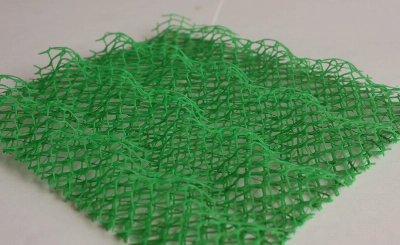

Three-Dimension 3D HDPE Geomat for Construction and Slope Protection

Three dimension vegetation 3D geomat is a new typed seed planting material with 3D structure, which can protect the ground surface being corroded before the turf is growing up, and fix the seeds.The compound protection layer formed after the grass grows up can endure washing by high level and high speed water. It can be a substitute of the concrete, bitumen, stone etc to be the slope protection material. It has mainly been used in highway, railway, river way, embankment, hillside etc.Geomat is a stable tri-dimension net structure, produced by multi -layer plastic geonet welding together. The surface is uneven and crumbly, so it allows soil or sand be filled in by 90%. Plants roots can go through the geomat freely to a depth of 30-40cm. In this way, plants, geomat and soil are firmly connected to protect the slope.Specification of Geomat for Road Railway Highway TunnelI. Em2, EM3, EM4, EM52. Width: 2m3. Roll length can be decided by customersTechnical Data:                              Standard Type (Slope Angle≤45°) Item and TypeEM2EM3EM4EM5Unit Weight≥(g/ m 2 )220260350430Thickness≥(mm)10121416Tensile Strength≥(kN/m)0.81.423.2Length(m)30 or 50Width(m)2High Tensile Strength Type (Slope Angl45°-90°)Item and TypeQEM3QEM4QEM5Tensile Strength ≥(kN/m)6-99-1215-20Elongation ≤%101010Property of Geomat for Road Railway Highway TunnelI. Tri-dimensional structure2. Can bear high water level scourApplication of Geomat for Road Railway Highway TunnelSlope protection in the highway, railway, channel, dam and so on.Application1). It can save embankment from erosion by wind and rain until the turf is generated.2). It can keep seed distribution evenly on the slope from the wind and rain to be lost.3). Mat can absorb large amounts of heat energy to enhance geothermal, and promote the seed germination,extend the growth period of plants.4). The compound protection layer formed by plants grown together can with stand high water level and washoutof flow.5).It can instead of concrete,asphalt ,stone and so on slope materials. Mainly used in highway, railway, riverchannel, embankment and other slope surface protection. Production standard:G b/t18744-2001  AreaApplication of Geosynthetics HydraulicLagooning and Water Treatment, Ornamental Ponds, Golf Courses Aquaculture and Desalination Water LagoonsTanks, Reservoirs, Liquid WasteFloating Cover SolutionsDrainage and FiltrationShading Cover SolutionsEnvironmentTailing ponds, Leach mining,Landfills,Landfill Capping,Protection against corrosion,Vertical BarriersCivil WorksErosion Control, Secondary Containment, Tunnels,Linear and Surface Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.BuildingParkings,Roofing,Soundproofing buildingAfter-sales service1.In order to provide customers with comprehensive technical support,we will provide technical and other related information upon request in a timely manner.2.In required,we will appoint specialized technicians to the construction site to give technical trainings to construction people,and offer technical guidance throughout the whole construction process.3.For damage due to shipment and delivery,after we receive the complaint,we will check the issure through provided pictures and videos.If our responsibility is confirmed,we wil offer free replacement.4.When the construction is completed,as your request,our technical staff may participate in the final acceptance.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
