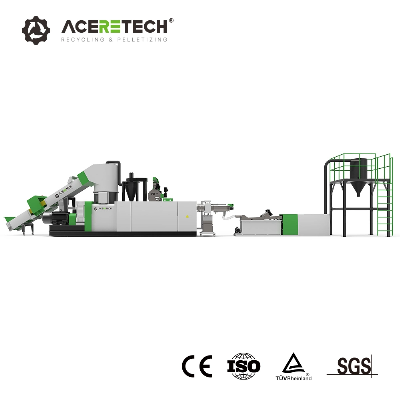

Discount Water Ring Pelletizing System for Plastics Films Recycling

Discount Water Ring Pelletizing System For Plastics Films RecyclingProduct DescriptionSuitable for high impurities materials. Instead of two stage machine.ACS-H Pro compacting and pelletizing system:The new recycling and granulation system is equipped with an optimized design single screw extruder and filtered in front of the vacuum degassing area. It is especially suitable for heavy printed or polluting plastics.Application: PE,PP,PS,ABSProduct ParametersSPECIFICATIONSMachine ModelACS-ProTarget Recycled MaterialHDPE,LDPE,PP,BOPP,CPP,OPP,PA,PC,PS,PU,ABS,PETFinal Product ShapeParticles     System compositionBelt Conveyor, Air Exhausting Device, Sliding Gate, Cutting Compactor with Inverter, Single Screw Extruder, Filtration first,Vacuum Degassing, Pelletizer, Water Cooling Device, Dehydration Section, Conveyor Fan, Product Silo.Output Range320kg/h-2100kg/hFeeding DeviceBelt Conveyor (Standard), Roll Hualing off device (Optional)Compactor Volume800L-2800LDiameter of screw100mm-180mmMaterial of screwBimetalL/D of screw50/ 1Heater of barrelCeramic heater or Far-infrared heaterCooling of BarrelAir cooling of fans through blowersVacuum deashing exhaustTwo Double-zone vacuum degassing system (Standard)Pelletizing typeWater-ring pelletizing/ water-strands pelletizing/ Under-water pelletizingVoltage StandardAccording to the Voltage of the Customer's LocationOptioanl deviceMetal detector, Roll hualing off device, Masterbatch and additives feederWarranty13 months from the date of bill of ladingTechnical servicesproject design, factory construction, installation and recommendations, commissioningModelCompactor Volume (L)Screw diameter(mm)L/D ratioProductivity(kg/h) for LDPE/LLDPEProductivity(kg/h) for BOPET/PETACS-PRO100880010050400-500500-600ACS-PRO1414140014050900-1000900-1150ACS-PRO16161600160501300-15001200-1600ACS-PRO18282800180501800-20001800-2100Detailed PhotosBelt ConveyorProvide transportation of plastic materials, such as film, filament, Raffia. If you want to feed the film in rolls into the compactor, our hauling roller is optional. The feeding speed is automatically adjusted by the inverter according to the fullness of the compactor.Metal DetectorIf metal is detected in the material by the metal detector, a warning will be issued and the belt conveyor will be stopped.CompactorThe arc-shaped plate guides the material into the extruder. This compactor combines pre-heating, pre-dry and size reduction to ensure a fast and stable feeding process.Rotating And Fixed BladeThe rotating blade and fixed blade cut the material into small flakes. The friction heating generated by the high-speed rotating blades will per-heat and shrink the flakes. Sliding Gate With Servo MotorInstalled between compactor outlet and screw extruder inlet. Control the open size of the sliding gate to control the materials duration time in the compactor and adjust the materials feeding capacity into the extruder.Single Screw ExtruderUnique design first stage single screw extruder gently plastics the agglomerates.Double Vacuum Degassing SystemVolatile such as micro-molecules and moisture will be removed to make sure the high quality of the granules, which is important for heavy printed film and materials with some water content. GearboxThe gearbox will reduce the motor speed to the screw shafts speed and distributes it to the two output shafts.Low-noise, high torque output.Second Filter - piston Type Filter* Long screen lifetime, lower screen change frequency: Long filter lifetime owing to large filter areas. * Easy to use and none-stop type: easy and quick screen change and do not need to stop the running machine.* Very low operation cost.Second Filter - Plate Type Filter* The Plate type filter is made in a continuous type with two filter plates. There is at least one filter working when the screen is changing.* Ring-shaped heater for consistent and stable heating.Self Clean FilterThe special design filter will greatly remove the impurities that are difficult to scrape such as aluminum foil and label paper. Straight in and out flow channels are designed for customer convenience. Automatic discharge impurities.Water Ring Pelletizing System* Uniform cutting speed is adjusted automatically to make sure even granules.* Pneumatic knife pressure: Cutting blades are pushed and fit completely to the die pneumatically.* Easy and fast pelletizer blades changeover, without adjustment work saves time.Under-water Pelletizing SystemHighly automatic pelletizing system. It is suitable for materials with high MFI and high production capacity requirements. This system includes pelletizer, valve, conveying pipeline, dewatering vibrating screen, silo.Dry SystemAdvanced dewatering vibration sieve and horizontal centrifugal present high drying performance and low energy consumption.Packing SystemFinal qualified granules will be blowed into and storaged in our storage silo. You can control the weight of each bag granules and monitor the capacity with our capacity
