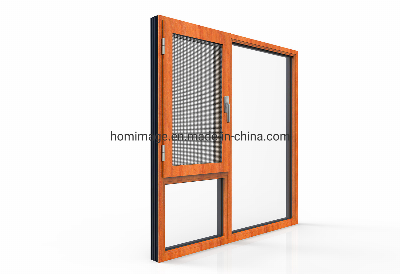

Eco Aluminium Clad Wooden Hinged Windows with Steel Fly Screen

TCW100 series Alu-wood casement WindowThe ideal option TCW100 is a alu-wood system used in luxurious buildings where it is needed the weather resistance of aluminium and the warm feeling of wooden combined.Basic depth of system is 100mmThe system is included security screen sash.Sash glass thickness up to 34mmThe connection of aluminium and wooden part is installed with special clips which is easy to be replaced.The wooden material is ECO wooden which is avoided cracking, water absorption and inflammation.  TECHNICIAL PARAMETERS  PerformanceHeat Preservation PerformanceW(m2.k)Sound Insulation Performance(DB)Watertight Performance(Pa)Airtight PerformanceWind Load Resistance(KPA)6+12A+6 Low-E,2.3-2.6,level 535DBlevel 4500PAlevel 5level 64.1KPAlevel 7 ParametersSuitable Width/Height of Sash(mm)Visible Width/Height(mm)Aluminium width(mm)Glass(Thickness)Outswing Casement Window-Width  300-800mm-Height 300-1800mm-Weight 45kgHCW100Frame Width  41mm;Sash  Width  74mm.HCW100Frame Depth  100mmSash  Depth  47mmSGU:4-10mmDGU:14-35mm  Our Product Range:  As of now we have successfully designed, manufactured and supplied globally the entire range of aluminium architectural and industry products and hardware and it includes the following:•Aluminium profiles     •Sliding Doors     •Sliding Windows•Aluminium formworks   •Entrance Doors   •Casement Windows•Unitized Curtain Walls   •Shopfront        •Sun rooms•Partitions              •Balcony railings   •Structural GlazingOur Service RangeDesign engineerOur teams bring the most professional and competitivesuggestions for your engineer and design needs, providing solutions on various sizes and complex projects.Technical Support The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.System design services   Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.  Our Factories&workshops  Extrusion factoryHardware factoryFabrication workshop    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
