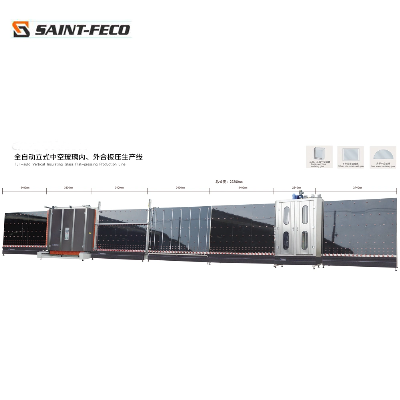

Inside and Outside Pressing Insulating Glass Machine/Double Glazing Glass Machine

   Inside and Outside Pressing Insulating Glass Machine/Double Glazing Glass MachineProduct Description1.PLC Control ,touch screen human-machine interface2.It can make double glass, triple glass, big and small glass ect.3.Automatic recognition of coated glass and LOW-E glass film.4.Imported glass suction cup and vacuum generator makes better glass catching effect5.The protection panel has been processed with plastic spraying to achieve good performance and long life time6.Cleaning parts adopts stainless steel and resistance material7.All electrical parts using international famous brand.8.The pressing part can be widen to 450 mm for easy maintenance9.Free choice of inside and outside pressing function 10.Outside pressing adopts central positioning function.Detailed PhotosProduct Parameters ModelSFW-2000SFW-1800Voltage380V/50HZ380V/50HZPower23KW21.5KWAir Pressure0.5-0.8Mpa0.5-0.8MpaMax.Glass Size2000x2500mm1800x2500mmMin. Glass Size280x450mm280x450mmWorking DirectionRight to Left or Left to RightRight to Left or Left to RightGlass Thickness3-18mm3-18mmTransfer Speed8-45m/min8-45m/minWeight4500KGS4500KGSDimension18900x2100x3200mm18900x2100x3000mmCertificationsPackaging & ShippingCompany ProfileSAINT-FECO CNC Machinery Co.LTD is established in 2006. We are professional manufacturer of window door and glass machines with 17 years experience. We have our own industrial park covered an area of with 30000 square meters in 2015, and our registered capital is 10,000000RMB. Also we have our own R&D team, production department, QC department, purchase department, after-sale service department and so on. We have 50 persons with rich machine assembling experience.Now we have more than 20 branches in China, also our machines have been sold to Southeast Asia, America, India, and so on.FAQQ: When can we arrange shipment?The delivery time usually 15 days after getting deposit, but customized machines will be longerQ: Our voltage is not 380V/50HZ, if can use the machines.The voltage can be customized as clients' request.Q: How about machine warranty time?Warranty time is one year for all machines, if parts broken during warranty time, we will give parts for free, but not including wearing parts like milling cutter, saw blade and so on.Q: How should I install the machines?We will appoint engineer to install the machines , also train your workers.Q: If the machine has problem in my place, how could I do?Usually small problem by online video is ok.We can also send our engineers to repair your machines.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
