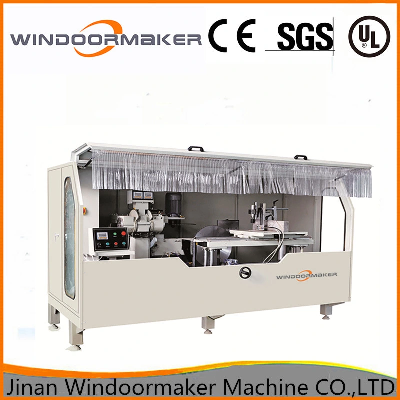

Aluminium Curtain Wall Processing Equipment Notching Saw Machine for Aluminum Profile

 Product DescriptionSpecification:This is the new machine type designed for the aluminum curtain-wall andlighting skylight processing with the special angle at the profile end surface.With Italy angle digital display. Equipped with magnetic ruler control system. realized Cutting Angle andworktable height digital display.Convenient worktable and locating device adjustment can achieve specialend surface angle processing. The two saw blades can swing freely at+45º~-45º.Technical Parameter: Power supplyMade to orderHydraulic gearbox motor power                        2x2.2 KWRotary speed2800r/minOperation air pressure0.5~0.8MpaAngle between 2 saw blade-45°~+45°Max. cutting depth(vertical& horizontal)150mmCutting speed 0~3m/min stepless speedSaw blade specificationφ500mm×4.4mm×φ30mm  Z=120Dimension 3200×1400×1800mm(LxWxH)Weight                             1500kg Certifications Company Profile   Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.        Machine at old customer    Packaging & Shipping /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
