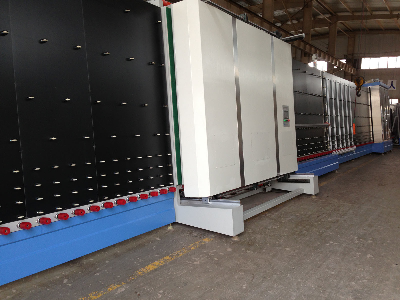

Curtain Wall Insulating Glass Machinery

Window insulating glass making machine 1, Whole process with PLC ( XINJE ) control system, man-machine interface touch screen (XINJE ). 2, Adopt Japanese Omron coating detection switch, automatic identification of coated glass and LOW-E glass 3, Washing machine, dryer shell made of stainless steel material. 4, Adopt Taiwan YSB vacuum generator and sucker, nineteen suckers are in a reasonable partition, glass suction effect will be better. 5, The four frequency control result in reasonable transportation and efficient production. 6, All photoelectric switches are supplied by Korean Autonics, ensure more accurate positioning. 7, The speed reducer adopt precision casting aluminium, turbine are made of casting tin bronze material 8, All bearings are made of all-steel, rotation is flexible without noise. 9, The conveying wheel is polyurethane materials, wear resistance and low noise. 10, The backup plate in transport line are Dew River moisture-proof plate, beautiful, generous, damp proof. 11, All conveying shaft with grinding processing, flange processing, corrosion prevention to ensure the precision of the main shaft, equipped with high quality bearing, so the glass conveying is stable, high speed. 12, The rubber roller transmit as a whole in the cleaning machine, automatically adjust the distance between the two rollers according to the different thickness of glass 13, The brush are high quality 1010 nylon yarn, it can clean coated glass, the shaft head are stainless steel; Brush filaments are close, ensure the glass cleaner. 14, Reasonable air knife angle design, easy to adjust the angle and distance and ensure the blowing effect is better 15, Aluminum frame positioning adopt longitudinal, transverse positioning and is adjustable, so that the aluminum frame positioning more accurately and conveniently, easy for one person operate large aluminium frame 16, Low noise circulating wind system, and equipped with damper(air brake) function, has the effect of energy saving. 17, American START stepping motor, ball screw control the size precision. 18, The hydraulic control plate pressure plate and support plate press, make work more stable. 19, The large-stroke of pressing section can be pushed to 400mm, convenient for maintenance 20, According to the different requirements of customers can realize unequal sheets and three sheets of glass production. Input Voltage  380V   50Hz  Total Power  26 Kw  Max. glass size  3000x2200mm  Min. glass size  280x450mm  Glass thickness  3-18mm  Working speed  8-45m/min  Total weight  6000kg  Overall dimension  21800x2600x3200mm/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
