6000mm Ultra Length Curtain Wall Window Insulating Glass Machine

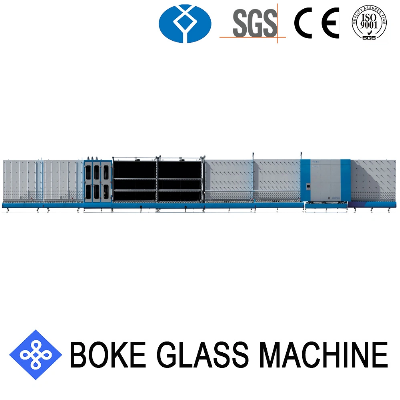

LBP2850C Out-panel Assembly Insulating Glass Production Line (Processing max. 6000*2850mm size IGU)1. Brief Introduction of LBP2850C IG LineThis Vertical Insulating glass machine is composed of1) double loading section2) washing and drying section,3) hollow out conveyor section4) hollow out light inspection and aluminum frame location section,5) double out-panel assembly,6) large stroke press machine  6) storage and unloading section.With special design, it can wash Low-E glass effectively with high speed.2. Main features of  LBP2850C insulating glass production line1. Automatically distinguish the coating side of coated glass and Low-E glass, indicated by alarm.2. The washing machine adopts stainless steel and other corrosion resistant material, with excellent waterproof performance, safety, clean and long service life. The combination of heavy caliber stainless steel wind knife, soft cot and high-pressure low-noise fan can effectively improve the cleaning and drying effect, and greatly improve the production efficiency.3. Can process same edge double layers and triple layers insulating glass with high efficiency.4. Adopts the world-famous brand low-voltage apparatus, sensor and PLC, etc. Make the line has longer service life.5. PLC control system with touch screen interface, easy to operate, and self-diagnosis the fault of the line with high degree of automation.6. The two hollow sections can easily check and wipe the glass on both sides, which can improve the efficiency and ensure the glass quality.7. The press machine can be opened in large journey to maximum 500mm, which is convenient for maintenance. Twice pressing can do super long glass.8. Drying section adopts the circulation of hot air to ensure the drying effect of the glass and reduce noise.9. The function of glass position memory can improve the work efficiency.3. Main Parameters of LBP2850 Insulating glass production line  Parameter name LBP2850CPower supply 380V / 50HZTotal power 51.35 Kw (include water heater 10Kw)Glass processing sizeMax. (L*H)6000x2850(mm) Min. (L*H)450x200(mm) Single glass thickness3-28(mm)Work speedWashing speed3-10m/min Running speed after washing15-45m/minOutline Dimension(L*W*H)29500*2500*4050(mm)Total weight 15000kg4. Details display of insulating glass production line  Section 1 Glass Double Loading SectionIt is the first section of the line and its main function is to transmit the glass to the washing and drying section.Low-E glass automatic diagnosis system. The back board is high quality Aosong board through the NC machining and wheel combination, makes it beautiful and durable..Section 2: Glass Washing Section1) Washing part: This part has three pairs of soft brushes (the material is high -temperature nylon wire ) and two pairs of sponge roller. The brushes are driven by three synchronous motors separately and the movement is stable. Three pairs of tubular rollers type of hair brushes, use High Temperature Resistant and soft nature hair brush, effective protection of the coating glass especially the LOW-E glass layer stratification. There are five pairs of rollers in washing box, it can make the glass move smoothly.2) Drying part: this part is also made of stainless steel. The air enters into the air knife from the top. The distance between the air knife and the glass should be adjusted according to the thickness of the glass in order to guarantee the drying effect. Air passage adopts the most advanced design and increase the drying speed and productivity. There are one pair of wind knife. The angle of the wind knife changed automatically when the thickness of glass changed. This make sure the glass is dry.  Section 3 &4 Hollow out conveyor section &aluminum frame location section1) The photoelectric switch is mounted on the crossbeam to automatically induce the height of the glass.2) Two pieces of crossbeam, better positioning the glass and the spacer.3) An entry box is provided on the back. In processing of big size laminated insulating glass, this design is very practical. Because the laminated glass often attached some hard dirt, it's not easy to clean off with the machine. That needs the workers to clean the hard dirt by manual. If the dirt is on the inside, the workers can go into the entry box to clean them by manual.Section 5 Double out-panel Assembly SectionThis section is used to transmission and store the glass to improve the work efficiency.The red wheel is controlled by Airtac cylinder, and they can easily push the glass tightly together.The sensor can easily know the glass position and stop at right place when glass coming from the light and spacer bar location section.There is a glass detection device on the crossbeam, which always stops at the position of 10cm above the glass, and does not have to go up and down once every time, greatly improving the assembly speed. Second pieces of glass are located accurately. It is completed by the manipulator, without pushing and positioning by manual, and th
