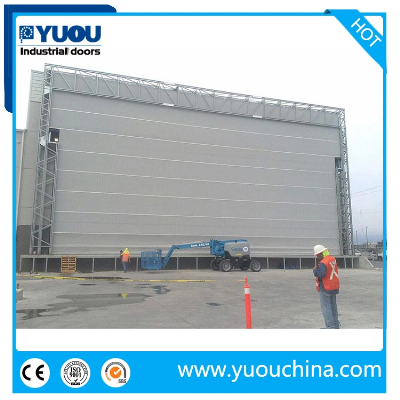

PVC Fabric Rolling Folding Stacking Flexible Shutter Mega Hangar Door

Description Fabric mega door is characterized by buildings suitable for small spaces on both sides, and is mainly suitable for large working environments such as hangars, shipbuilding, steel making, mineral processing, large warehouses, and logistics channels.Technical data: Fabric Mega Door Applicable door opening size W42*H24m Motor power 3.2KW-13KW Running speed 0.15m/s Door thickness 450-800mm Work temperature -40ºC~50ºC Wind pressure resistance 650N/m2 Control box protection level IP54 Control external button protection level IP64 Structure Diagram:Product Details:  1. CurtainA. PVC fabric: 1.0-1.5mm thickness, commonly used color: blue, yellow, green, red, white.B. Function and performance: UV-resistant, fire-resistant, anti-mildew, anti-bacteria, self-cleaning, oil-resistant, acid and Alkali resistant, anti-wicking, anti-aging2. Steel StructureA. Brand of material: BAOSTEEL Group (Best brand in China), surface process:  hot dip galvanized steel tubes.B. All the joints are fully welded to ensure the high strength of the structure.  3. Motor and ControllerA. Motor loading capacity: 2-15t, running speed: 6m/min, power: 5-13KW.B. Variable frequency control, slow start and stop, other functions can be customized.   4. Safty DeviceA. Photo sensor:  When there is human or vehicle under the door, the door will stop closing and get up automatically,  this will avoid accident collisions.B. Accident fall arrester safety system: clamp type fall arrester is installed to prevent any accident falls and avoid any damage to human or other objectives under the door.Products real shot:/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
