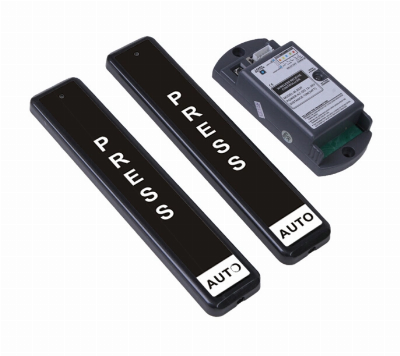

Automatic Sliding Door Wireless Touch Switch (CNB-202E)

Automatic Sliding Door Wireless Touch Switch (CNB-202E)Main CharacteristicAdopt uniformity frequency,high stability of wireless signal receiving and sendingSiludification of PU varnished shell,dapper appearance with anti-off screwOperation frequency 315M,stability better than 10-5.Panel pushing with low-power  consumption,long service life battery.Three point of trigger pressing design to ensure the effective action.With large capacity output,available to be used with autodoor,electric lock and access controllerDoor open within 2s when signal received.Wide voltage input of AC/DC12-36VFunction switch with voice indicator,power indicator turns green to confirm the  validity of operation. This product is with the function of coding self-learn.Make sure the code of remote transmitter has been learned into the receiver before using (16 kinds of codes can be learned)Operation way: Press the learned button,indicator turns  green.Press any key of the remote transmitter.The transimitter has been  learned by the receiver successfully  with two flashes of green light appears.Delete method: Press the learn button  for 5S,turns o green light,all the codes has been deleted successfully( Can not delete one by one)Power should be cut  in case of the function switch(L-type and M-type).  Otherwise, the receiver maintains the previous state.1.  The launch indicator(When trigger effective turns red light)2.  Pushing panel3.  Dial switch placed inside,prevent the anti-interference by  editing different signal code  4.  Fixing screw5.  Learn button  6.  Indicator(With red light when power is on,truns green when signal received)7.  L-type and M-type available for chosen for the output state8.  Binding postDescriptionWidely be used for autodoor and door control equpiment.With the wireless signal output,door can be open by the pushing the panel.Easy installation, specailly for the accasion which have the difficult in wire embedding.Pushing panel power supply:6V        Receiver power supply:AC/DC12-36VOutput capacity:10A 24VDC             Maintain open time:1-9S adjustablePushing panel:203(L)*41(W)*12.5(H)mm        Receiver:123(L)*50(W)*32(H)mmAdopt  uniformity frequency,high stability of wireless signal receiving and sending.Siludification   of PU varnished shell,dapper appearance with anti-off screwWelcome your viewing and inquiry. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
