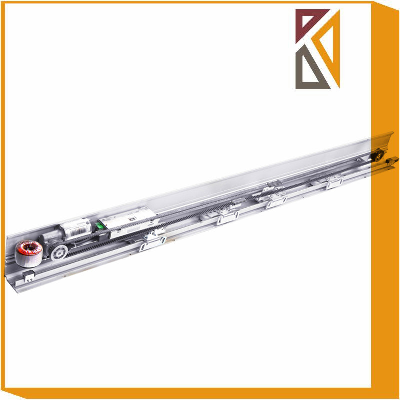

Commercial Glass Automatic Sliding Door Operator

ES90 for sliding pedestrian doors, with a maximum capacity of 120 kg, designed for interior use, with smart control system using the latest germany technology, to permit self regulation of the movement depending on the weight and size of the door panels. Safety functions incorporated, with control of thrust force, automatic reversal in case of detection of an obstacle in the panel slide zone and fuse protection. Encoder for automatic reading of the run, position and slowing of the doors. CE marking. Customizable functions: opening and closing speed; open time for automatic/partial; partial opening; selection of mode of emergency operation with battery; selection of motor type, etc. Error displaySectional View,European slimline and modular design, height is less than 100mm, track is divided into supporting profile, guide profile and rubber. It not only simplifies the installation and maintenance ,but also ensure operator's more smooth and quite working.Microcontroller,Microprocessor controlleryesMicroprocessor-controlled function programs- Off- Automatic- Permanent open- Partial opening- Exit only- Night-bank control yesyesyesyesyesyesEmergency off yesSelf-learningyesAutomatic reverseyesConnection for biostable electro-mechanical lockingyesConnection for light barriersyesSetting of basic parameters via integrated display and push-buttonsyesEmergency opening or closing (with use of battery pack)yes24 V output for external consumptionyesRead-out error store with error codesyesTechnical Datas,Single openOpening width700mm-1400mmDoor weight1 x 120kgDouble openOpening width800mm-2000mmDoor weight2 x 100kgProfile sizeL4200mmH100mmD142mmOpening speed10-50cm/sClosing speed10-40cm/sMotor & EncoderDunkermotoren GR65x25, 40V,50W DC bruth motor and RE20 encoder from Germany ActivationOptex OA-205V-2 combination sensor, remote controller or program switchManual force150NHold-open time0.5s - 30sElectric CharacteristicsMain powerAC230,50Hz/ AC110,60HzConsumption150WFuse IP protectionIP20/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
