Automatic Intelligent Metal Glass Sliding Door Operator Controller

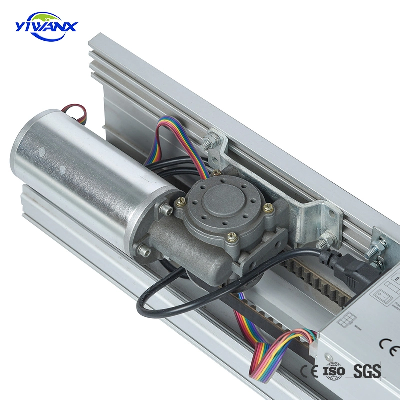

Product DescriptionAutomatic sliding door system(YW -195) is the best choice for heavy-load automatic sliding doors. With intelligent microcomputer controller, great power motor(100W), specially designed high-strength hangers, high quality hanger wheels(pulleys) and other durable items , it is widely used for special areas where heavy automatic sliding doors shall be applied, like laboratories, hospital operating rooms,etc .Its strongest system works quite stably and powerfully.And the special design and strong structure makes it bear load max.200kgs.With creative product design, sophisticated production technology and professional services,YW-195 automatic sliding door system perfectly combines high-end technology with modern life style, and fully meets the requirements of the urban honorable life.It is the best seller in European market, and the toppest choice among similarly competing products.Technical Data of Automatic Sliding Door System (YW-195):Door sliding modesSingle-openingDouble-openingDoor leaf weight≤1*195 kg≤2*190 kgDoor leaf width600-1200mm500-1150mmOpening speed200-650mm/s(Adjustable)200-600mm/s(Adjustable)Closing speed150-550mm/s(Adjustable)150-550mm/s(Adjustable)Motor24V 100W brushless DC motorOpening time0-9s(Adjustable)Automatic functionAutomatically reverse upon obstructionVoltageAC220V  50Hz-60HzAmbient temperature-20°C~60°CFeatures:**Microcomputer intelligent control and advanced mechanical configuration.**Work at a range of power supply , low power consumption, energy-saving standby mode**Intelligent control system, adjustable parameters**Low noise drive unit,simple and convenient installation**Advanced brushless motor and worm gear reducer integration , high efficiency, great torque, no powder pollution,quick in speed up and down, long service life.**The unique self-locking function, need not extra accessories, full function remote control device, safe and reliable.**Safety sensor, ensure safe passage**Has a variety of trigger way to open the door**In the event of a power failure, use the backup batteries to keep the door in normal operation.**Self-locking function, when the door is fully closed , keep the state.Components list of Automatic Sliding Door System (YW-195):  Standard packing list100W Motor1Controller1Microwave motion sensor2Driven wheel / Idler pulley1Connector1Hangers4Link span(left)1Link span(right)1Stopper2 (left/right)Belt tensioner1Fastenings1 setAluminium beam2×2.1mInstallation Manual & Warranty Card1setOptional accessories:Details of Optional accessoriesModel No.                                         SpecificationPT01                                         Safety beam(photocell)                                          Power: DC12~36V                                         Max transmission dist                                         Type: single beam(one pair eyes)AK02                                         Access keypad(plastic)                                         Power: 12VDC                                         User capacity: 500 usersFC04                                         Remoter(4 buttons)                                         Power: 12~36V                                         433MHZ Learning code type                                         Transmission distance: 25M                                         Function status: full open, half open,                                         lock, automaticFP02                                         Finger printer(stainless)                                         Power: DC 12V                                         Weight: 500g                                         Size: 115×70×35mm(L×W×H)UPS                                         Backup battery                                         One set of changing electronic part                                         and two pcs 12V battery.                                          When power off, it can make the door work 3 hours                                         or open and close 100 times.PB03                                         Wired push button switch(plastic)                                         Weight: 96g                                         Size: 200×50×12.5mm(L×W×H)             LC02                                         Electric lock                                         Power: DC 12V                                         Working current: 800mA                                         Installation hole:212(L)*35(W)                                         Deep into wall around 43mm                                                                                                               Panel dimension:205×34×42mm(L×W×H)                                         PB04                                         Touchless switch                                         Power: DC 12V                                         Working type: infrared induction                                         Working distance: 1-15cm
