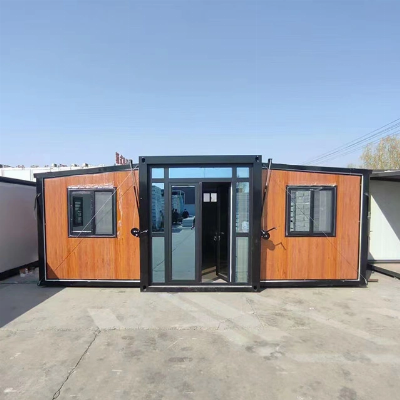

Extended Foldable Prefab Container Homes Expandable Cabin Foldable Container House

  Basic features External dimension (mm) 6320*5900*2480 Internal dimension(mm) 6160*5560*2240 Folding state(mm) 2200*5900*2480 Total mass(kg)   Frame structure Middle roof beam T2.5mmQ235B Middle base beam T2.5mmQ235B Side beam t1.5mmQ235B Middle pillar T2.5mmQ235B Side wall frame t1.5mmQ235B Sub-frame t1.5mmQ235B Hanging head t4mmQ235B Folding hinge 13mm Galvanized hinge Protective coating for integral frame Electrostatic spraying/Straight white plastic powder Top and bottom of middle cabinet 80*100 Top and bottom of side cabinet 40*60*1.5 thick square tube Top of container External roof board t0.5mm Galvanized plate Internal ceiling board t831 internal ceiling board Wall panel Heat preservation of middle top T50mm glass filament cotton(Side top 50 foam plate) Side wall, front wall panel& back wall panel t50mm-Color steel plate with glass filament cotton or t50mm-Foam plate Internal partition t50mm Foam board Internal washroom About 1700*1500mm (can be adjusted) Floor Middle floor Fireproof glass magnesium floor 15mm Floor on both sides Bamboo flooring Electrical system Electrical wiring, install in strict accordance with the moisture-proof specifications, all electrical products shall comply with CE certification. Connect the circuit according to the circuit engineering specification, indoor:2 LED lights, 2 Ceiling lamp, 3 five- hole single socket, 1 single switch, 3 ten -hole socket,1 Air conditioner socket,1 20A -Leakage protector. Voltage 220V, 50HZ Common Security Door 2 sets of Common security door Window 4 sets of Sliding plastic steel single glass window (920*1120mm) Quality guarantee 1 year warranty 1. Mobility: removable and reusable. 2. Rapid assembly: short manufacturing period and no foundation. 3. Safety: steel frame structure, windproof and shockproof. 4. Durability: The outer wall of the steel plate is corrosion-resistant, acid-resistant, rust-free and crack-free, and the service life is more than 10 years. 5. Sound insulation and heat insulation: it adopts air insulation design, which has good sound insulation and heat insulation. 6. Aesthetics: It can be designed in various shapes, the outer wall has many colors, and the appearance is bright and beautiful.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
