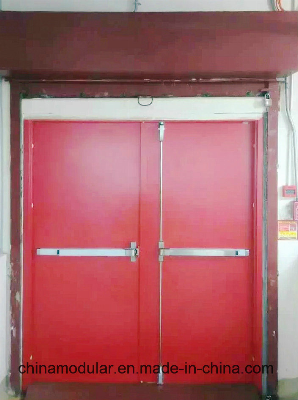

UL Certificated Steel Fire Door for Escape Access (CHAM-ULSD004)

UL LISTED Double Door Leaf Fire Rated Steel Door for Fire Escape PassagePowder Coating Metal Entrance DoorAll-round fire and smoke prevention expansion sealKey Specifications: SI. NOElements of SpecificationCriterion/ Measurement1TypeDOUBLE - Leaf (Glazing size: 120X630 optional)2Door leaf Thickness: 50mm3Door leaf Sheet thickness1.0mm4Door Frame1.5mm5In filledRock wool6Fire class: 2 (two) hours. 7Size: 1000mm X 2150mmLeft hand open & Right hand open option8ColorRed (Later as per RAL color number )9HandleExternal level handle of panic bar exit device10Push barInternal push bar of panic bar exit device11Door closerOverhead door closer12HingeStainless steel1. Powder coating finish2. Door leaf thickness: 45/50/55mm3. Steel sheet of door leaf: 0.4-1.0mm cold rolled steel sheet4. Steel sheet of door frame: 1.0-2.0mm cold rolled steel sheet5. Filling material: Aluminum silicate infill or rock wool OR Honeycomb paper6. Lock: Fire rated lock7. Diversified designs and colours are available8. Hinges: 3 Stainless steel hinges (external hinge, opening 180 degrees) or 3 galvanizedSteel hinges (interior hinge, opening 90 degrees)4.5"X4.5"X3.4mm stainless steel hinge w/2 ball bearings9. Threshold: Stainless steel threshold10. Standard size: 2100*900mm, 2100*1000mm (including the frame)11. Accessories: Hinges, fire locks, handles, fireproof rubber seal, installing bolts12. Weight: 80-100KGS/PC13. Opening direction: Left/right hand, inward/outward14. Packing: Plastic bag+ carton15. Container capacity: 95-110PCS/20FT, 190-210PCS/40GP, 220-240PCS/ 40HQ16. Certificate passed: SGS, ISO9001: 2000, CE/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
