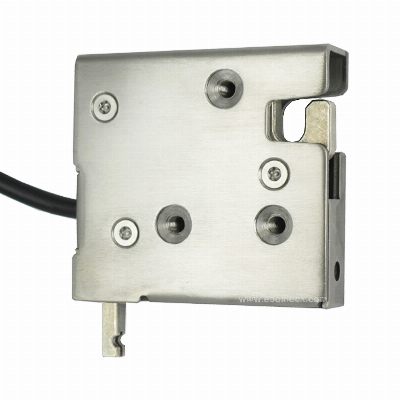

Stainless Steel Electronic Cabinet Lock with Reporting for Electronic Lockers

Electric Cabinet Lock MD1215LS-H is a high security access control solution for cabinets, drawers, safe and lockers. Robust all metal construction allows MD series cabinet lock operates against heavy mechanical load. An optional built-in door sensor provides reporting of open/ close status and mechanical kits for manual override in case of power failure. Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any access control system or standalone cabinet locking With easy push-to-close operation, the lock is designed with internal spring rod to push door open when electrified. It simplifies the accesscontrol of enclosures in a wild variety of applications.FeaturesSuperior heavy duty metal constructionStainless steel 304 housing­Surface-mounted compact electric lockConvenient mechanical override enables manual release during power failureOperates against heavy mechanical loadAccepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,Can be fitted to locker, mail box and drawers etcSpecifications  Operation Voltage12/24VDC intermittent ±10%Power Consumption12V DC   1500mAOperation ModeFail LockedHolding Force600KGMaximum power on timeLess than 30 secondSolenoidRated for intermittence useCycle RatingMore than 1,000,000 timesWorking Temperature-20ºC ~ +60ºCDimensions LxWxH72mm*67mm*18mmGross Weight250gProtection ClassIP20ComplianceCE and RoHs certificatePart No.Part NoOperating CurrentMicroswitchTrigger Spring Manual OverrideMD121512VDC@1500mAWithout 10N/25NHiddenMD1215S12VDC@1500mAWith10N/25NHiddenMD1215L12VDC@1500mAWithout10N/25NExposedMD1215LS12VDC@1500mAWith10N/25NExposedMD122012VDC@2000mAWithout 10N/25NHiddenMD1220S12VDC@2000mAWith10N/25NHiddenMD1220L12VDC@2000mAWithout10N/25NExposedMD1220LS12VDC@2000mAWith10N/25NExposed  Weoffer customization for cable length andconnector type to better meet the exact requirementof your application. Options for customizationVoltage Current Trigger Spring Mounting holes Material CableConnector9V12VDC24VDC48V1500mA2000mA 10N25N35N M5x16 thread(standard) M5x25 thru  Steel (standard)Stainless steel TwistedRVVFlat cableMolexKF2510PHRJ11ApplicationsThe electronic cabinet lock is ideal for various applications as following:Electronic lockers for storage or deliverySteel cabinet or metal furniture Retail display cases and drawersFiling cabinetUtility cabinets and drawersKey cabinetMuseum or retail product display casesPharmaceutical cabinets and drawersElectronic mailbox and lock box About UsDajiang Lock Co., ltd is a leading manufacturer specializing cabinet locks, drawer locks, and locker locks. No matter size-restricted enclosures or heavy-doored metal cabinets; our electronic cabinet lock can meet your particular security requirement with customized design for your applications. Our range includes electronic cabinet lock, electronic locker lock, solenoid lock, solenoid cabinet lock, drawer lock, keypad locker lock, keypad cabinet lock, combination cabinet lock, cabinet cam lock, combination locker lock, combination cam lock, digital locker lock, electric cabinet lock and electric bolt lock.   Payment and shipment:/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
