China Factory Aluminum Stainless Steel 4X8′ Heavy Duty Expanded Metal Sheets

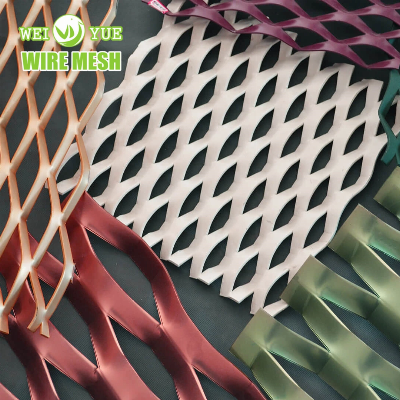

How is expanded metal made?Expanded metal Sheet is produced from metal sheet or roll through stamping and expanding, which forms a wide array of diamond shaped openings with uniform sizes.Compared with the traditional flat metal sheet, expanded metal mesh has more notable advantages for its versatile applications.Owing to the expanding process, the metal sheetcan be expanded up to 8 times its original width, losing up to 75 % its weight per meter, and becomes harder.So it is lighter, less expensive than a single metal sheet..What is expanded metal?Expanded metal mesh types includes raised expanded steel mesh (also called standard or regular expanded metal) and flat expanded metal mesh.Raised expanded metal mesh has diamond openings with slightly raised surface. Flattened expanded metal mesh is manufactured by passing the standard expanded sheet through a cold roll reducing mill, forming diamond openings with flat surface.The form of the meshes is normally rhombic but more shapes are available, such as hexagonal, oblong and rounded. The size of the meshes varies from very small meshes 6 x 3 mm suitable for filters, to very large meshes 200 x 75 mm often used for architectural applications.The materials most often utilised for expanded metal are mild steel, aluminium and stainless steel, but we also offer in other materials (brass, copper, titanium, zinc, etc).The length and width of the sheet and the grid parameters are always described according to the following pictures.     Expanded metal specification:Materials: carbon steel, low carbon steel, iron, aluminum, stainless steel, copper, titaniumExpanded metal thickness: 0.3mm-20mmExpanded metal panels siezes: 1/2,3/4,1'× 2',1' × 4',2' × 2',2' ×4',4' × 4',4' × 8',5' × 10',or made to size.Surface treatment: hot-dip galvanizing, anti-rust paint, powder coated, PVC coated, etc.mesh thickness(mm)distance short(mm)distance long(mm)strip(mm)width (m)length(m)weight(kg/m2)0.52.54.50.50.511.80.510250.50.620.730.6102510.6210.8102510.621.25110251.10.621.77115401.5241.851.210251.1242.211.215401.5242.31.515401.51.842.771.523602.623.62.77218502.1243.69222602.6243.69340803.8245.0045010042211.154.550100522.711.1555010051.42.612.39650100622.517.35850100822.128.26Opening style of expanded metal:Advantage of expanded metal :The advantages of using expanded metal are numerous and depend on the specific application. Below we have listed a few of the reasons for selecting expanded metal.Light and cost efficientIt is a great advantage that expanded metal is not assembled nor welded, but always made in one piece.No metal is lost in the expanding process, hence expanded metal is a cost effective alternative to other products.Because there are no strained joints or welds, expanded metal is stronger and is ideal for forming, pressing and cutting.Due to the expansion the weight per metre is less than that of the original sheet.Due to the expansion a much bigger open area is possible compared to other similar products. Greater strengthThe three-dimensional shape of the meshes is another advantage since the areas where the meshes meet are strong and enable the material to stand a far heavier point load than similar products or a flat sheet. Anti-skid qualitiesSome patterns have a type of mesh with special qualities that not only make the surface non-skid, but also give the expanded metal water and wind repellent qualities. Ideal for secondary operationsThe expanded Metal is ideal for secondary operations. To save time and to help reduce your costs  offers to handle the secondary operations for you. It could be flattening, bending, welding, hot dip galvanising, painting or anodising of the expanded metal.Applications:The different types of meshes have different degrees of strength since the open area and weight of each type can vary substantially. Below we have listed examples of the many situations where expanded Metal can be used with advantage. The high strength and the anti-skid qualities make expanded metal most advantageous for:WalkwaysFootbridgesFootstepsRampsPlatformsand similar applications.Expanded metal can also make an effective barrier and is favourable for use in security/safety applications to protect e.g. buildings, people or machines. Expanded metal also achieves a sound reduction and shielding effect, ideal for use in airports and bus stops.Expanded metal is a very popular material for today's architectural and industrial design and our many customers all over the world use it for many other applications apart from those mentioned above. Building / ArchitectureExamples of applications in buildings where the use of  expanded metal will be a benefit:CladdingCeilingsFacadesSun protectionFencingShieldingFor these applications the  expanded metal most commenly used has a rib width larger than 20 mm.Expanded metal can also be used for reinforcing concrete, plastic, artificial materials or for acoustic panels.It also works well as a decorative product where there is a requirem
