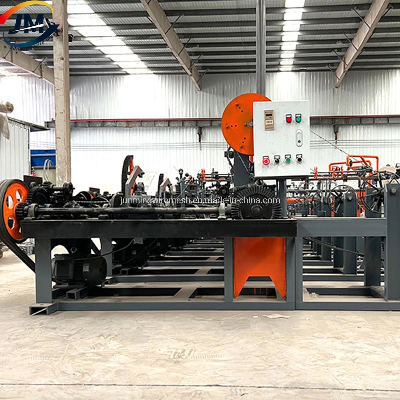

China Factory Galvanized Double Twisted Strand Full Automatic Barbed Wire Machine

China Factory Galvanized Double Twisted Strand Full Autimatic Barbed Wire MachineWire Mesh Machine, Barbed Wire Making MachineProduct DescriptionThe barbed wire making machine is divided into double strand barbed wire macking machine(CS-A), Single strand barbed wire making machine(CS-B), Positive and negative twist barbed wire making machine(CS-C), Blade razor barbed wire machine.Double strand barbed wire making machine(CS-A) is composed of two parts of winding and winding twisting, and is equipped with four wire coil. All parts of the machine work coordinately and move smoothly. This machine is mainly suitable for producing various kinds of multi strand barbed wire.Machine TypeCS-A Double strand barbed wire making machineMotor Power(kw)3Voltage(V)380Dimensions (mm)Main :2000*1200*1400Auxiliary:2000*650*800Weight (kg)1000Strand Wire Diameter(mm)2.0-3.0Barb Wire Diameter(mm)1.8-2.4Tensile Strength(N/mm²)400-600Barb Distance(inch)3'(7.5cm)4'(10cm)5'(12.5cm)6'(15cm)Yield (m/h)67590011251350Yield (kg/h)120(Strand Wire Diameter 2.8mm,Barb Wire Diameter 2.2mm as sample)The Single strand barbed wire making machine(CS-B) is composed of two parts: wire twist and wire winding. It is equipped with three wire placing discs and adopts advanced electronic counting control, It is the only equipment in China to produce single strand barbed wire netting machine.Machine TypeCS-B Single Strands Barbed Wire MachineMotor Power (kw)3Voltage(V)380Dimensions (mm)3000*1200*1500Weight (kg)800Strand Wire Diameter(mm)2.0-3.2Barb Wire Diameter (mm)1.8-2.4Tensile Strength (N/mm²)400-600Barb Distance (inch)3'(7.5cm)4'(10cm)5'(12.5cm)6'(15cm)Yield (m/h)450600750900Yield (kg/h)60( Strand Wire Diameter 2.8mm,Barb Wire Diameter 2.2mm as sample)The double wire positive and negative twisting barbed wire machine (CS-C) is composed of positive and negative twisting, barbed winding and friction rope take-up, and is equipped with four take-up discs.Machine TypeCS-C Reverse Twisted Double Strands Barbed Wire MachineMotor Power (kw)3Voltage(V)380Dimensions (mm)3200*1200*1500Weight (kg)800Strand Wire Diameter (mm)1.6-2.8Barb Wire Diameter (mm)1.6-2.4Tensile Strength (N/mm²)1100-1200(1.6 - 1.8 mm Ø)800-900(1.8-2.6mmØ)400-500(2.7-2.8mmØ)Barb Distance (inch)4'(10cm)5'(12.5cm)Yield (m/h)600750Yield (kg/h)30(Strand Wire Diameter 1.6mm,Barb Wire Diameter 1.6mm as sample)The AdvantagesDouble strand barbed wire making machine(CS-A) and (CS-B) has the advantages of easy operation, smooth movement, low noise and low energy consumption, and adopts advanced electronic recording and control system.This double wire positive and negative twisting barbed wire machine (CS-C) has the advantages of convenient operation, stable action, low noise and energy saving, and adopts advanced electronic counting control.The products produced by this machine are widely used in national defense, railways, highways, farming and animal husbandry for protection and fencing.FAQ1. Are you factory/manufacturer or trader?We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about the extra charges by the Middle man or trader.2. Can I get free samples?Yes, you can get the samples freely, if you need, special specification can be customized as your requirements.3. Which is your minimum order quantity?Actually there is no MOQ for our products. But usually we recommend a suitable quantity based on a good price (low freight and production cost) which is easy to accept.4. Which payment method you can accept?We accept T/T, L/C, Western Union, Paypal and Money Gram.5. How long is the delivery time after payment?Usually the delivery time is in 7-15days in stock, it is in 30days if customized products.Why Choose Us?Professional & experienced factory (15years)    •  Professional quality control and design team for your goodsQuick delivery time & superior quality    •  Made in China certified Chinese supplier and manufacturer    •  Many transported ways for your choose(by train, by sea, by air)       as your requirements and goods' size and volume.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
