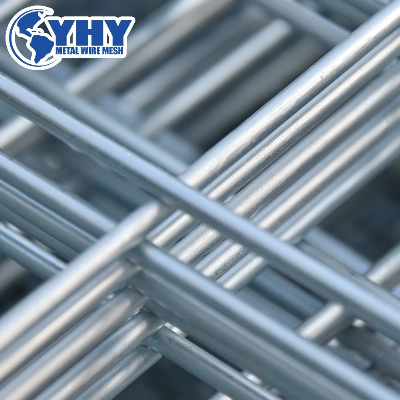

Galvanized Welded Roof Mesh for Golden Mine Underground Support

Products Overview   YHY supplies Welded Mesh which can be used for permanent areal coverage in any excavation in mines. The mesh can be fitted between rock bolts, or other support, to further consolidate the excavation and prevent the fallout of smaller rocks between support. This further improves safety underground for mining crews and also provides protection to machinery. Welded mesh is provided in either Ø4.0mm wire, Ø5.6mm wire or for a combination of the two diameters also can make thicker wire diameter. All mesh manufactured by NCM is produced according to strict quality standards to ensure the product meets industry safety requirements. Stringent testing of the weld integrity is performed to maximize the strength of the final product and all sheets are flush-cut smooth to reduce any risk of injury to operators during handling.Difference Type 1.  ROOF MESH MODULE  Turned edges for interlocking of modules and to maintain stiffness for ease of handling over the top of a continuous minerReinforced areas for lateral linking of roof bolt across the strataWire diameters, spacing and overall dimensions can be customized to suit particular applicationsCustomized paint lines along the modules to suit roof bolt patterns if requiredPackagingSteel or plastic strappingBundles sizes to suit the customerWire Diameter4mm5mm5.6mm7mm8mm10mmWeld Strength4.7kN7.4kN9.2kN14.4kN18.9kN29.5kN  ComponentStrengthStandardWireYield = 500 -750MPaAS4671:2001 Grade 500LGalvanizing-AS2423:2002 to type W02Z2.MESH STRAPTypically flat sheets of smaller wire diameter and dimensions suitable for rib supportWire diameters, spacing and overall dimensions can be customized to suit particular applicationsCustomized paint lines along the modules to suit roof bolt patternsPackagingSteel or plastic strappingBundle sizes to suit the customerWire Diameter4mm5mm5.6mm7mm8mm10mmWeld Strength4.7kN7.4kN9.2kN14.4kN18.9kN29.5kN  ComponentStrengthStandardWireYield = 500 - 750MPaAS4671:2001 Grade 500LGalvanizing-AS2423:2002 to type W02Z3.MINE MESHFeaturesTrimmed edges to ensure there is limited overhang of wire to cause injury when handlingWeld tests completed on all welders over continuous runsWeld strength to be greater than 75% of the wire UTSWire diameters, spacing and overall dimensions can be customized to suit particular applicationsCustomized paint lines along the modules to suit roof bolt patternsAvailable as strap from 4mm to 8mm diameters Custom sheets available with double or additional wires if requestedPackagingSteel or plastic strappingBundle sizes to suit the customer. Generally packs of 30Wire Diameter4mm5mm5.6mm7mm8mm10mmWeld Strength4.7kN7.4kN9.2kN14.4kN18.9kN29.5kN  ComponentStrengthStandardWireYield = 500 - 750MPaAS4671:2001 Grade 500LGalvanizing-AS2423:2002 to type W02Z Company Profile(1) Steel raw material suppliers from the big steel factory of China(2) 10 Welded machine import from Germany(3) Qualified and trained technical and workers(4) Strictly Quality Control Processing  Anping YingHangYuan Metal Wire Mesh Co., Ltd. It is located in the largest wire mesh manufacture base in Asia, Anping County, Hebei, China. It has become a big comprehensive wire mesh company which is engaged in domestic and foreign trade. Since our international business department set up now our products are sold 50 countries and area, such as USA, Germany, Italy, Australia, and Southeast Asia etc.Our factory has been passed the Bureau Veritas certificated: ISO 9001: 2015 and CE certificate. We have cooperated with China big steel factory for 20 years, our steel raw material quality meets the international standard. We also can offer difference steel raw material test report.YHY CertificateContainer Loading Promotional Products  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
