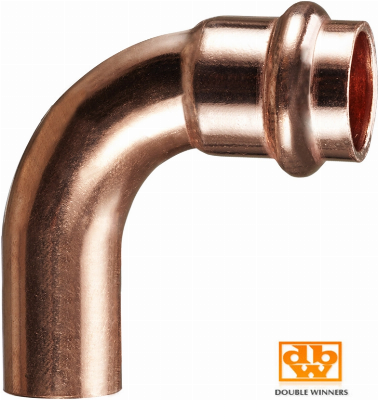

Copper Press Fitting Street Elbow for Potable Water

Copper Press Fitting Street Elbow for potable water DBW copper press 90° elbow- For use with ASTM B 88 tubing - Copper-Press connection - Components: EPDM sealing elements -Available in sizes 1/2" to 2"Model 9001Features and benefitsThe original copper press joining solution Available in sizes 1/2" to 2", including elbows,couplings,tees,reducer, fitting reducer,caps,Customizable with three sealing elements, EPDM, HNBR,FKMleak detection feature identifies un-crimped connectionscompatible with most common pressing tools and jaws in the marketAll tubing must comply with the ASTM B88 standard  Operating parameters:Operating pressure: 200PSI CWP maxOperating temperature range:-20°F-250°F Approved applications -Potable water- Hydronic heating-Chilled water - Compressed air -Non-medical gases-Low pressure steam Approvals & Certifications ANSI 61: drinking water system components-health effectsNSF/ANSI 372: drinking water system component-lead contentCUPCInstallation InstructionsCut tube square using a tube cutter or fine tooth sawDeburr tube ID using a deburring tool Deburr tube OD using half round file Check fittings bead to ensure seal is present. Do not use any type of oil lubrication Mark tube to proper fitting insertion depth( see insertion depth chart below)                           Fitting Insertion Depth Chart(1/2"-2")Tube size1/2"3/4"1"1-1/4"1-1/2"2"Insertion Depth3/4"7/8"7/8"1"1-7/16"1-9/16"  Turn slightly while sliding press fitting onto tube. Slide all the way to insertion mark and make contact with stop Place press tool at a right angle over fitting bead .Start the pressing process. Please see specific tool manufacturer for tool instruction   Company and production line view:    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
