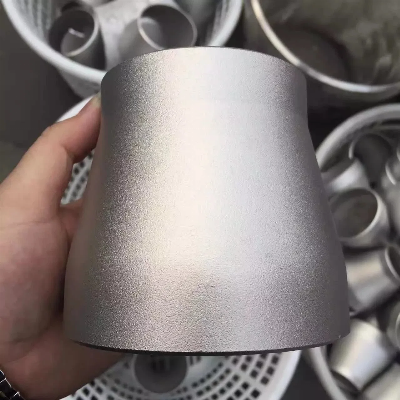

ASME B16.9 ASTM B366 Monel 400/Wpnc Nickel Alloy Reducer

ASME B16.9 ASTM B366 Monel 400/WPNC Nickel Alloy Reducer  Monel 400 has a wonderful corrosion resistance by many reducing media such as sulfuric and hydrochloric acids. Generally, Monel 400 has a more resistantance to corrosion by oxidizing media than higher copper alloys. Monel 400 resists pitting and stress corrosion cracking in most fresh and industrial waters. It has good resistance in flowing seawater, but under stagnant conditions, pitting and crevice corrosion is induced. Monel 400 is probably the most resistant to hydrofluoric acid in all concentrations up to the boiling points. Monel 400 is not able for its toughness, it does not show embrittlement tendency at cryogenic temperatures. It is work hardenable.FeaturesResistant to seawater and steam at high temperaturesExcellent resistance to rapidly flowing brackish water or seawaterExcellent resistance to stress corrosion cracking in most freshwatersParticularly resistant to hydrochloric and hydrofluoric acids when they are de-aeratedOffers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations, but is seldom the material of choice for these acidsExcellent resistance to neutral and alkaline saltResistance to chloride induced stress corrosion crackingGood mechanical properties from sub-zero temperatures up to 1020° FHigh resistance to alkalisApplications:ASTM B366 WPNC Pipe fittings elbow,Tee,reducer,ASTM B366 Monel 400 Pipe fittings is applied in these field, like Chemical process equipment, crude oil stills, gasoline and fresh water tanks, marine engineering equipment, valves, pumps and fasteners.ASTM B366 WPNC Monel 400 Pipe fittings Chemical composition:Alloy%NiCuFeCMnSiSMonel 400 UNS N04400Min.6328     Max. 342.50.320.50.024ASTM B366 WPNC  Monel 400 Pipe fittings Physical properties:Density8.83 g/cm³Melting point1300-1390 ºC Specifications:ASTM B 366Dimensions:ASTM, ASMESize:Monel 400 Seamless Butt Weld Fittings: 1/2″ - 10″Monel 400 Welded Butt Weld Fittings: 1/2″ - 48″Schedule:Sch 5 TO Sch XXS.Wall Thickness:from 2 to 40 mm.Type:ASTM B 366 Monel 400 Butt Weld Fittings  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
