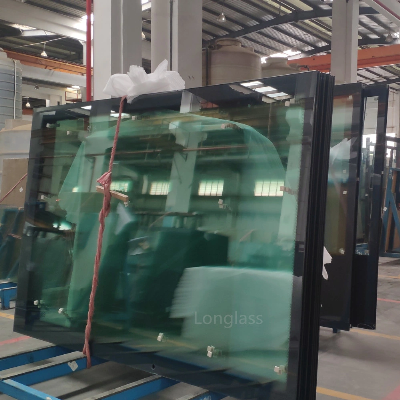

Green/Euro Grey Tempered Reflective Coated Glass for Building Glass

Green/Euro Grey Tempered Reflective Coated Glass For Building Glass  Product DescriptionReflective glass (also called solar controlled glass) is generally coated with one or more films composed of metals such as chromium, titanium or stainless steel or their compounds on the surface of the glass to change the optical properties tomeet different requirements. It's widely applied in window and glass curtain walls. Max Size2500*60000mmMin Size300*300mmThickness3-19 mmColourclear, green, crystal grey, European grey, ultra white, etcFeaturesIt has the function of reflecting and shielding light (also called sunlight control ability).The transmittance of reflective glass to visible light is in the range of 20% to 65%, and the reflectivity of infrared and near-infrared rays, which are strong in sunlight, can be as high as 50%, This kind of glass can effectively shield the solar radiation energy entering the room under the condition of ensuring soft indoor lighting.One-way transparency.The reflective glass coated with metal film has the characteristics of one-way transmission. The surface metal layer of the coated reflective glass is extremely thin, so that its facing surface has the characteristics of a mirror, and the back side is as transparent as window glass. Mirror effect.Reflective glass has a strong mirror effect, so it is also called mirror glass. Using this kind of glass as a glass curtain wall, the surrounding landscape and clouds in the sky can be mapped on the curtain wall to form a gorgeous picture, so that the building and the natural environment can achieve perfect harmony. ProductVisible Light(%)Solar Direct(%)Shading Coefficient " 100-2010Solar Heat Gain Coefficient (SHGC) NFRC 100-2010NFRC U-ValueW/m2.KNFRC 100-2010European U-Value W/m2.K (EN 673)ColorTransmittanceReflectance (Out)Reflectance (In)TransmittanceReflectance (Out)SummerWinter6LCCT138(2#) 34223037170.570.505.365.925.8grey6LCCT145(2#)41301841220.600.525.345.905.8grey6LCCT159(2#)59212160150.770.675.335.895.8light grey6LRF-III(2#)51181446120.670.584.845.435.4light blue6 LRF-IV(2#)44222346160.640.564.715.315.3light blue grey6 LRF-V(2#)4328637190.570.494.655.255.2silver blue6LRTB150X(2#)54181350120.700.614.975.555.5light blue6LRTB160(2#)62141757100.770.675.125.695.6light blue6LRTB170(2#)75232471160.860.755.285.845.8neutral6LRTB180(2#)82161676110.920.805.345.895.8neutral6LTY120(2#)21332418260.370.324.024.694.7silver grey6LTY130-1(2#)30271725200.460.404.314.944.9silver grey6LTY140-1(2#)40211535150.570.494.785.375.3grey6LTY150(2#)54211549140.690.605.155.725.7grey6LTY165(2#)64172059120.780.685.275.845.8light grey6LSC140(2#)38251631180.520.454.715.315.3light blue6LSC150(2#)53181745130.650.574.715.315.3light blue6LSC160(2#)60171556120.740.644.715.315.3light blue6LSC170(2#)70161965120.820.714.715.315.3light blue6 LAC-140(2#)4626840180.610.535.155.725.7silver blue6LSD-140(2#)44151840110.630.555.125.695.6light blue6 LSD-150(2#)52201951150.720.625.395.965.9light blueThe above data are calculated by WINDOW6.3 developed at Lawrence Berkeley National Laboratory,except for having been given clear indication of standards. The glass performance data will be finalized by the performance data sheet which submitted by LONGLASS . Above performance just for design reference.Our EquipmentsOur CertificationsRelated ProductsCompany ProfileGuangzhou Longlass New Material Co.,Ltd, subject to Guangdong Longlass Technology Group Co.,Ltd. It is a leading enterprise of glass deep-processing  since 1994. We have 360,000 sqms of modern production workshop, and have passed  4 management systems: ISO 9001, ISO 14001,ISO 45001, ISO 50001.We have a series of intelligent equipments, including the world's advanced LiSEC intelligent glass deep processing system and 8 full automatic production lines, Leybold suction pump, Bentele Coated Glass Washing Machine, Shimadzu molecular pump, etc. Our heat soak oven is in compliance to the calibration requirement of BS EN 14179-1: 2016.These are not only ensure the safety of the workers,They are also greatly increase productivity and improve product quality.We aim to offer the customers with the most cost-effective products and services, and we have a diligent team. There are more than 50 senior management personnel and more than 180 senior technical personnel with rich industrial experience. More than 790 skilled professional technical personnel, and a well-trained after-sales service team of more than 80 people.Longlass, be ambitious and to be your best glass suppliers.Our Advantages1. More than 27 years experience in glass processing .2. Four production base cover 360,000 sqm areas.3. Four management systems: ISO 9001, ISO 14001, ISO 45001, ISO 50001.4. Product standard: ASTM E2 190, BS EN12600:2002,BS 6206: 1981, ANSI Z 97.1-2015.5. Our factory is the approved processor by SentryGlass.6. Our off line coated glass and off line tempered glass can be Off-site processing 7. Our heat soak oven is in compliance to the calibration requi
