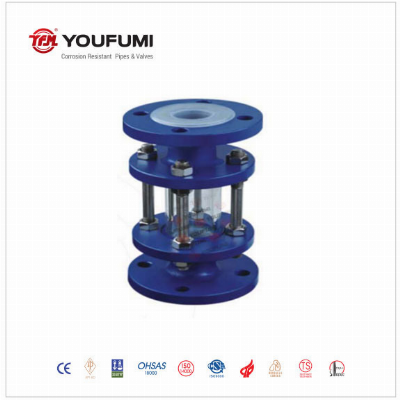

PFA Lined Sight Glass for Oil Pipeline

PTFE lined Sight Glass for oil pipelineTechnical Specification Design and Manufacture Standard: HG/T 3704 Flange Standard: ASME B 16.5, GB/T 9119, DIN, JIS Product Specification Body Material: WCB, ASTM A395, CF8, CF8M Lining Material: PTFE, PFA, PO, FEP Nominal Diameter: 1/2"-10"(DN15~DN250) Pressure Range: Class150, PN10, PN16 Product description: 1. Youfumi lined sight glass provides reliable and safe visual indication of fluid flow on any corrosive service. Safe and shatter-proof, each window consists of two tempered lime glasses cemented together by a proprietary adhesive. 2. Easy visual quality control and inspection. Fluid flow can be viewed from either top or bottom. 3. No product retention when installed vertically. 4. Youfumi lined sight glass can be widely used in corrosive services in chemical and petrochemical plants, pharmaceutical plants, and food and beverage processing. We are manufacturer specializing in: 1. PTFE/PFA/FEP/PO/PVDF Lined Valve(Including butterfly valve, ball valve, gate valve, check valve, globe valve, diaphragm valve, plug valve etc. ) 2. PTFE/FEP/PFA/PO Lined Pipe and Pipe Fitting (Including Spool, Elbow, Tee, Cross, Reducer, Instrument Connector, Blind Flange, Strainer, Sight Glass etc). Any interest, pls contact us freely.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
