Simple Operation Beer Vodka Wine Filling/Packing for Glass Bottles Machine

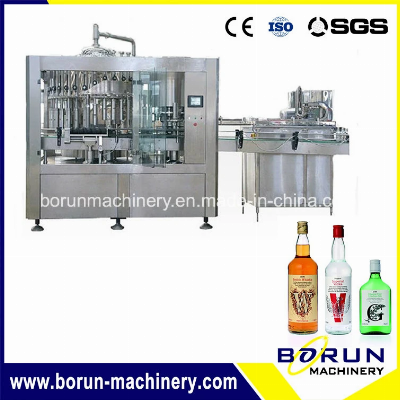

Simple Operation Beer Vodka Wine Filling/Packing for Glass Bottles Machine   This machine is mainly used for glass bottle alumium caps of wine, vodka, whisky filling and sealing. It is 3 in 1 machine, composed of alcohol bottle washing, filling and capping system. The machine adopts international advance technology, easy operation and maintenance, high performance.Features:Screw feeding for glass bottle. It is more stable.High precision mechanical filling valve, no bottle no vacuum pumping.Famous SIEMENS brand PLC, and all the other electrical and pneumatic parts are world famous brand.The liquid level is controlled by electric probe to assure the filling precision.Italy technology capping heads ensure high capping speed and capping precision.Technical Parameters of Beer Filling Machine:ModelBCGF16-12-6BCGF18-18-6BCGF24-24-8BCGF32-32-10BCGF40-40-12BCGF50-50-15BCGF60-60-15Rising heads16182432405060Filling heads12182432405060Capping heads66810121515Capacity based on 500ml PET bottle3000BPH5000BPH7000BPH10000BPH15000BPH22000BPH24000BPHSuitable bottle shapeGlass bottlesSuitable bottle diameter(mm)Φ50-115Suitable bottle height160-320mmCompressed air pressure0.3-0.7MPaWashing water pressure>0.06MPa,≤0.2MPaMotor power (KW)2.23.54.56.07.59.511.2Dimensions(mm)2300*1600*25002600*1920*25503100*2200*28003850*3000*28504850*3800*27505750*3550*27506500*5500*2750Weight (KG)28003650480068008650105001280Main Electrical components list:ItemParts NameBrand1PLCSIEMENS2Inverter3Touch Screen4Switch5Contactor6Relay7Solenoid ValveAIRTAC8Water PumpSOUTHERN9SensorAUTONICS10Air componentAIRTACContact Us:Mr. Xavier Guo Tel: +86-512-58682331Fax: +86-512-58682331Mobile: +86-13405609100borunmachinery.en.made-in-china.com/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
