Cheap Price Impact Sample/ Specimen Notch Measuring Profile Projector

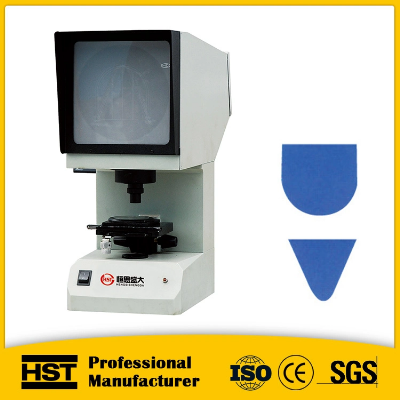

Cheap Price Impact Sample/ Specimen Notch Measuring Profile Projector 1. ApplicationCTS-50 is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped notch of the impact specimen with the features of easy operation, simple structure, direct inspection and high effectiveness.Product Parameters 2.Main Technical ParametersDiameter of the Screen200mmMagnification of the instrument50XObjective magnification2.5XWorking table square shape110x125mmDiameter of round worktable90mmDiameter of working screen70mmStroke of working tableLongitude: ±10mm,Latitude: ±10mm,Rise and fall: ±12mmEye-field diameter3.8mmWorking distance22.89mmScope of revolving of the worktable360°Power supply220V, 60HZ,150WDimension515×224×603mmLight source(tungsten halogen lamp)12V,100WWeight18kgConfigurationHost----1set Base adjustment button---4 PcsPower line----1PcsHalogen tungsten lamp----2PcsFlat glass plate ---1PcsCompany ProfileOur customersOur exhibationCertificationsPackaging & ShippingContactTina                          Related products Dear Customer, we also have the below impact teters and attached machines for choice: Dial Display impact testing machines Digital control impact testing machines Computer display impact testing machines Computer automatic low temperature impact testing machines from minus 60 to 190 degree Projector for impact specimen Broaching machine for specimen Impact testing low temperature chambers   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
