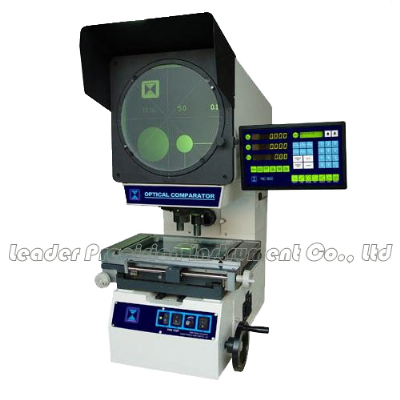

Turret Vertical Profile Projector (VOM Series)

Turret Vertical Profile Projector (VOM Series)   Character: Excellent Optical System Accuracy of the contour measuring≤ 0.08% Three Lens to be chosen Projector head can be adjusted Erect image       Technical DataReverseVOM-1510VOM-1020VOM-2515Metal table' s size(mm)357*228404*228450*280Glass table' s size(mm)210*160260*160306*196Stage Travel X-axis150mm200mm250mmStage Travel Y-axis100mm100mm150mmStage Travel Z-axis100mm(for focus)100mm(for focus)100mm(for focus)Accuracy≤ ± (2.5+L/150)µ m≤ ± (2.5+L/150)µ m≤ ± (2.5+L/150)µ mScreenScreen Diameter: 312mmwith 4 film clipsScreen rotary range: 0° -360°Rotary angle resolution: 1' or 0.01°Digital ReadoutMC800 Counter with RS232 output (can be used to gather the data and measure the point, line, circle, angle and distance).IlluminationTransmission and reflection: 24V/150w-halogen lamp.PowerAC110-120v, 200-240v, single phase 50/60Hz Total power 400WCoolingFansG. W/N. W220/170KG225/175KG230/180KGDimension(L*W*H mm)780*780*1100780*780*1100810*780*1120  Standard Delivery: Digital Readout MC800VOM-10X ObjectiveScreen ClampFoot-SwitchPower Cable  Light source   Optional Delivery: Measuring SoftwareEdge DetectorCharts (3 kinds)VOM-20X ObjectiveVOM-50X ObjectiveVOM-100X ObjectiveHolder ClampV-shape Clampswivel center supportMini-printerRotary tableCalibration Scale   Quality System1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.2. All our measuring machines are with CE certification3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.4. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!5. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, andhas won the trust of customers!After-sale Service1. Free professional operation training2. Warranty: 18 months instead of 12 months3. Regularly upgrade of software is available free4. Available lifetime technical support  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
