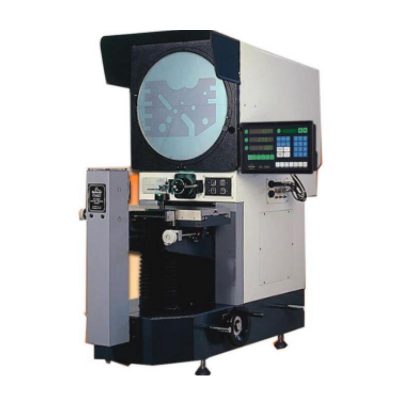

Cpj-4025W Horizontal Optical Profile Projector

CPJ-4025W Horizontal Optical Profile ProjectorFeatures:The horizontal projector has stable and reliable mechanical structure and high precision magnification.It can accurately image the contour, section and surface shape of the measured workpiece to the projection screen, which is suitable for the observation and measurement of the contour shape of cutter, gear, thread and spring.CPJ-4025W Horizontal Optical Profile ProjectorTechnical SpecificationModelCPJ-3020WCPJ-4025WX axis Coordinate trip(mm)200250Z axisCoordinate trip(mm)100150Work table size(mm)400×150450×200Swing range±15°±15°(can customize to ±25°)Digital resolution(μm)0.5Error value(μm)X,Yaxis: (2.5+L/100). Zaxis: 3.5+L/50 (LIs the length of the measured object unit:mm)Xaxis Coordinate trip(mm)75 (focusing)100 (focusing)Weight(kg)160240Size(mm)1090×830×10101215×646×1210Projection screenSize(mm)Ф 300Ф 400Rotation range0~360°Rotational resolution1' or 0.01°objective(CPJ-3020W)magnification10× (Optional)20× (Optional)50× (Optional)100× (Optional)object field (mm)Ф30Ф15Ф6Ф3work distance (mm)77.744.338.425.3objective(CPJ-4025W)magnification times5× (Optional)10× (standard)20× (Optional)50× (Optional)100× (Optional)object field (mm)Ф80Ф40Ф20Ф8Ф4Work distance (mm)93.7103.995.165.735.0Data processing systemDC-3000Multi-function digital display table, full English display, can do multi-point sampling, coordinate rotation.Point, line, circle, distance, Angle measurementInstrument lightingtransmission: 24V/150W halogen lamp.  reflect:21V/150Whalogen lampEquipment accessoriesMicro printer (optional), optical edge finder (optional), M2D-CPJ software (optional), etc. -- please refer to the projector attachment for detailsEquipment power: AC 100-240V 50/60Hz,Rate of power: 400W/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
