Optical Measuring Profile Projector

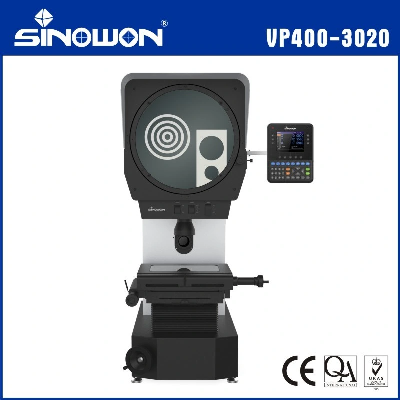

VP400-3020Z Vertical Optical System with Profile ProjectorVP400-3020Z (#511-430Z) Profile Projector technology designed to display accurate magnification of workpiece for comparision and precision measurements with data processing. Features:The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;Coating process reflector, clearer image and great dustproof;Adjustable contour and surface illumination, to meet with difference workpiece demand;Imported high light and long using life LED illumination ,to ensure precision measurement demand;High resolution optical system with clear image and magnification error is less than 0.08%;Powerful Bi-axial fan cooling system,highly increase using life;Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;Built-in Mini-printer, can print and save data;With standard 10X objective, optional 5X, 20X,50X objective,rotary table, foot switch ,clamp, etc.Specification:  Product NameØ400mm Digital Vertical Profile ProjectorObverse ImageVP400-3020ZOrder Number#511-430ZMetal Stage Size458x358mmGlass Stage Size356x248mmStage Travel300x200mmProduct Dimension(L×W×H)1003 x 617 x 1309mmPacking Dimension(L×W×H)1200x800x1580mmFocusing  90mmAccuracy≤3+L/200(um)Resolution0.0005mm  Load Capacity10KgScreenφ312mm,Measurement Range ≤ Ø300Rotation Angle 0~360° ;Resolution: 1 or 0.01°,Accuracy 6'Digital ReadoutDP400 (510-340) Multifunction colorful LCD digital readoutIlluminationContour Illumination:3.2V/10W LEDSurface Illumination:3.2V/10W LEDWorking EnvironmentTemp 20ºC±5ºC,Humidity 40%-70%RHPower SupplyAC110V/60Hz; 220V/50Hz,150WCold-air Blowing System3-axis Powerful FanGross/Net Weight280/230kgObjective Lens:  Magnification10X(Std.)20X(Opt.)50X(Opt.)100X(Opt.) Field of Viewφ30mm φ15mm φ6mmφ3mm Working Distance75mm69mm44mm26mm  Accessories:Term of Service:  1) We have the professional technical after-sales service group and supply the lifelong technical service support to to the customers.     We not only offer operation video but also offer English operation manual.     Besides, We will provide video-conference If customers require online service.   2)Warranty of 12 months:    Within the guarantee period, we will send the spare parts for free if the machine have quality problems, excluding artificial damage,force majeure and transportation reason.    We also can send the technician to repair the machine under the customers' require, and the customers only pay round-trip ticket, accommodations and meal expenses, no need  pay any wages to the technician in this period.    Exceeded warranty:We keep all the service, but the customer need pay all the charges ,including spare parts and transportation cost.   Your Precision, Our Mission./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
