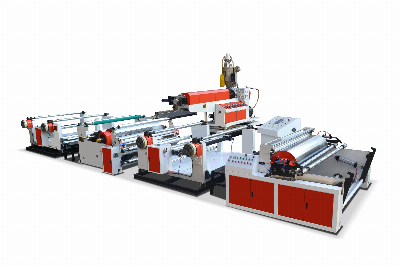

High Speed Non Woven Paper Cup Aluminum Foil Extrusion Laminating Machine

High Speed Non Woven Paper Cup Aluminum Foil Extrusion Laminating MachineApplication:This machine can extrusion LDPE,PP,EVA,EAA...etc lamination grade material,Use for film(BOPP,BOPET,CPP,CPE...etc),Paper,Aluminum Foil,Non-woven...Etc as base materialfor compounding lamination.Widely used in paper packaging,plastic packaging,non woven packaging,industrial packaging and other packaging. Feature:1. Machine is combined with feeding part, corona treater, extrusion and compounding part,extruder, second feeding part, rewinding part, control unit2. Extrusion: LDPE maximum 200 kg/hours (resin temperature 300-320°c)                    PPEVA maximum 180-200kg/hours(accurate extrusion by various resins, process conditions)3. Equipped with fast switching device and connector4. T die head power 22kw, total 5 heating control area5. Equipped with extruded air vehicle which is electrical driving6. Automatic temperature control7. Double unwind with air shaft, automatic loadign8. Unwind servo control EPC device9. Surface rolling type rewind structure10. Pneumatic control trim cutter11. Whole machine PLC control with touch screen, tension automatic controlSpecification:ModelLM1100LM1300LM1600Coating resinLDPE ,PP ,EVA,EAA etc.Base materialPaper, plastic, non woven, woven sack, aluminumSpeed 150m/min150m/min150m/minMaterial width1100mm1300mm1600mmMaterial thickness10-500um10-500um10-500umMax extrusion200kg/h200kg/h200kg/hMax unwind and rewind diameter1000mm1000mm1000mmPower70kw80kw100kwWeight16000kg17000kg18000kgDimension11000*6900*3600mm11000*7100*3600mm11000*7400*3600mmExtrusion sample:Machine details:Certification:Our company:Workshop:CNC facility:Packing and shipping:Exhibition:     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
