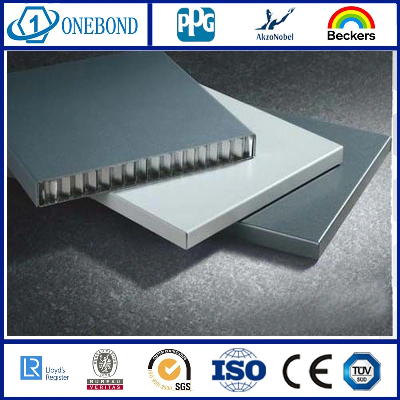

PVDF Coating Aluminum Honeycomb Panel for Decoration

01. About honeycomb panelHoneycomb panel combines the synthetic performance advantages of the single aluminum panel and the aluminum composite panel and also conquers the disadvantages of the single aluminum panel and aluminum composite panel, therefore recognizing as the best technical product of the building curtain wall in 21 century. It is the new improvement to transfer space technology for civil application as the most popular metal building curtain wall material in the word.02. Product detail03. Product SpecificationProduct Name    Honeycomb panelApplication Marine decoration, curtain wall, ceiling, partition, exterior decoration, interior decoration etc.Certification  Lloyd's Register, ISO9001:2000, BV, SGS.Surface MaterialAluminum, Fiberglass, Formica, Stainless steel, Galvanized steel, Stone etc.Regular Totall Thickness  6mm, 8mm, 10mm, 15mm, 20mm, 25mm, 30mm, 50mm, 100mm, 200mm etc.Regular Top & Bottom Aluminum sheet 0.5-1.5mmStandard sepcification Cell size: 8.47mm, aluminum foil thickness: 0.05mm.SizeStandard size: 1220*2440mm, normal max size: 1500*6000mm.Note: Price is adjusted according to different size, we can produce the size which is exceed normal max size.Raw Material3003, 5052 etc.Surface treatment PE, PVDF, Anodized etc.Color typeSolid colors, Metallic colors, Wood grain, Marble and customized color etc.Service Range- Provide professional design and suggestion.- Manufacture products in accordance with customer drawings. -Arrange shipment04. Technical ParameterThickness Unit6 mm10 mm15 mm20 mm25 mmCover sheet thickness, front [mm]1.0Cover sheet thickness, rear  [mm]0.50.51.01.01.0Weight [kg/m²]4.75.06.77.07.3     Technical properties    Section modulusW[cm³/m]2.64.6141924RigidityE@J[kNcm²/m]7.10021.90075.500138.900221.600Alloy / Temper of Aluminium Layers  Peraluman alloy (AIMg), H42 acc. EN 573-3Modulus of Elasticity  E[N/mm²]70.000Tensile Strength of Aluminium  R m[N/mm²] ≥ 1250.2 % Proof Stress R p0,2[N/mm²] ≥ 80Elongation  A 50[%] ≥ 5Linear Thermal Expansion  α 2.4 mm/m at 100ºC temperature difference      Core     Aluminium foils from AIMn alloys (EN AW-3003) Bare comprehensive strength [N/mm²]> 2.5 Weight [kg/m³]> 50       Surface        Lacquering  Coil Coating Fluorocarbon based (e.g. PVDF) Gloss (initial value) [%]25-40 Pencil Hardness  HB-F       Acoustical Properties     Sound Absorption Factorα s 0.05 Airborne sound insulation index (acc. to ISO 717-1, ISO 140-3)     R w[dB]2121222325       Thermal  Properties     Termal conductivity (regarding total thickness, incl. cover sheets)     λ[W/mK]0.951.351.782.252.70 Thermal resistanceR[m²K/W]0.00630.00740.00840.00890.0093 Temperature Resistance [ºC]-40 to +80 05. Main featuresA. Light specific gravity, high rigidity, steady, structure and high wind-resistance performance.Curtain wall aluminum honeycomb panels have been extensively applied to extemal wall decoration of high-rises. Honeycomb panels of the same rigidity have a weight that is only 1/5 of aluminum panels and 1/10 iron panels, whose total thickness being 15mm, panels 1.0mm thick and bottom panel 0.8mm thick have a weight of only 6 kgs per square meter.The interconnected honeycomb cores are like numerous I bar with interface layers distributed within the whole panel, thus resisting shearing and bending and large pressure. Its wind-resistance performance has greatly exceeded that of aluminum composite panel and aluminum solid panel, so that even large- sized honeycomb panels can reach extremely high straightness, aluminum honeycomb panels can reach ghe higest intebsity and bending resistance with the lightest weight, which is an incomparable compared to other materials, thus making it currently the preferred light weight material in the building industry.B. Excellent performance in sound insulation, heat insulation, reproofing and quakeproof.Since the honeycomb cores in aluminum honeycomb panels are divided into many enclosed cells, which stops air flows and blocks heat and sound waves with 20-30DB, noise reduction for sources from 100HZ to 3200HZ and a heat conduction coefficient of 0.104-0.130W/M.k, aluminum honeycomb panels is an ideal energy-saving material with an energy absorption capability of 150~3500KJ/M. For example, when it is raining, rains dropping on the aluminum solid panels or aluminum composite panels will make a loud noise, but if replaced them with honeycomb panels, no such problem will occur.C. Straight appearance, color variety, elegant smooth. Aluminum honeycomb panel has high flatness, and has the advantages of easy deformation, slab roller coating aluminum with fluorocarbon. PVDF coating aluminum roll the most important point is that with a continuous roller coating technology, the aluminum coating is completed once the product stream without color coating roughness good, reliable, and can long remain outside the building colorful wall. After the sun and rain or long-term industrial air pollution, it is clear roller board than spraying clean bri
