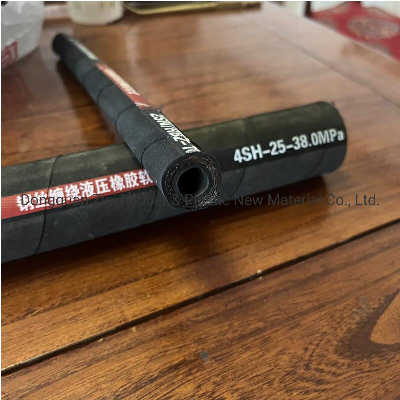

Extremly High Pressure 4 Spiral Steel Wire Reinforced Hydraulic Hose Pipe

Product NameHigh Pressure Steel Wire Braided HoseProduct SpecificationHigh pressure steel wire braided hose:1. Product structureThe structure of the steel wire braided hose is composed of a liquid-resistant synthetic rubber inner rubber layer, a middle rubber layer, a one or two or three layer of steel wire braided reinforcing layer, and a synthetic rubber outer rubber layer with excellent weather resistance.2. Product useSteel wire reinforced hydraulic rubber hose is mainly used for mine hydraulic support, oilfield mining, suitable for engineering construction, lifting and transportation, metallurgical forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools and various industries Transportation of petroleum-based (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil) liquid, water-based liquid (such as emulsion, oil-water emulsion, water), water-based liquid (such as emulsion, oil-water emulsion, water), For gas, etc. and liquid transmission.Note: The steel wire braided hose of our company is designed and manufactured according to the GB/T3683-1992 standard, and can be produced according to the requirements of ISO/DIS1436-1985, DIN20022 and SAE100R1AT, SAE100R2AT standard hoses, this standard is not suitable for castor oil-based and grease-based liquids.3. Working temperatureoil: -40ºC-+100ºC, air -30ºC-+50ºCwater: emulsion below +80ºC4. Product Features(1) The hose is made of special synthetic rubber, which has excellent oil resistance, heat resistance and aging resistance.(2) The hose has high bearing pressure and excellent pulse performance.(3) The tube body is tightly combined, soft to use, and less deformed under pressure.(4) The hose has excellent bending resistance and fatigue resistance.(5) The length of the steel wire braided hose is large, the fixed length above Φ32 is 20 meters, and the length below Φ25 can reach ten meters or even more than 100 meters.Product Description1. StructureThe inner and outer rubber layers of the cloth steam hose are made of synthetic rubber with excellent heat resistance, and the middle pure cotton canvas reinforcement layer. The tube body is soft, light, flexible, and heat resistant.2. PurposeIt is suitable for conveying saturated steam or superheated water not higher than 150ºC.3. FeaturesThe rubber layer has good heat resistance, and the burst pressure of the rubber tube is not less than 10 times of the working pressure.technical parameters of single-layer steel wire braided hosehose sizethe inside diameterdiameter of steel wire layer(mm)outer diameterwork pressuretest pressureburst pressureminimum bending radius(mm)reference weight(kg/m)MPAPsiMPaPsiMPaPsi1-5-214.5-5.59.5±0.614±0.821304331.54564639129900.251-6-205.5-6.511.7±0.616±0.82028983043476086941000.341-8-17.57.5-8.513.7±0.618±0.817.5253626.25380452.576071150.411-10-1610±0.515.7±0.620±0.81623182434784869551300.471-13-1413±0.519.7±0.624±1.01420282130434260861800.701-16-1216±0.522.7±0.827±1.01217391826083652162050.841-19-1019±0.525.7±0.830±1.01014491521743043472400.951-22-922±0.528.7±0.833±1.09130413.519562739122801.091-25-825±0.532.2±0.837±1.0811591217392434783001.381-32-632±0.539.2±0.844±1.26869913041826084201.801-38-538±0.745.2±0.850±1.257257.510871521745001.381-51-451±1.058.2±0.863±1.54579686941217396301.801-64-2.564±1.071±0.875±1.52.53623.755437.510877704.001-76-1.576±1.084±0.888±1.51.52172.253264.56529305.501-89-189±1.099±0.8103±1.51144.91.5217343511007.601-102-1102±1.0111±0.8115±1.50.81161.21742.434812509.00technical parameters of double-layer steel wire braided hosehose sizethe inside diameterdiameter of steel wire layer(mm)outer diameterwork pressuretest pressureburst pressureminimum bending radius(mm)reference weight(kg/m)MPAPsiMPaPsiMPaPsi2-5-605±0.511.2±0.615±0.8608694901304115021735900.402-6-606±0.513.5±0.618±0.86086949013041150217351000.452-8-508±0.515.5±0.620±0.85072457510868125181131150.622-10-4010±0.517.5±0.622±0.8405796608694100144901300.712-10-5310±0.516.5±0.624±0.853768079.511520132191271300.712-13-3013±0.521.5±0.826±1.030434745652190130411800.932-16-2116±0.524.5±0.829±1.021304331.545646391292051.002-16-3416±0.524.5±0.830±1.034492951739085123172051.232-19-1819±0.527.5±0.832±1.01826082739125478252401.232-19-3419±0.527.5±0.832±1.034492651739085123172401.382-22-1622±0.530.5±0.835±1.01623182434784869552801.542-25-1425±0.534±0.839±1.01420292130434260863001.542-32-1132±0.541±0.840±1.211159416.523913347824201.822-38-1038±0.747±0.852±1.21014491521743043475002.442-51-851±160±0.865±1.5811591217892434786303.182-64-564±174±179±1.557257.510871521747903.742-76-476±186±192±1.5458068951217899204.772-89-389±199±1106±1.53.55075.2576110.5152110605.732-102-5102±1112±1118±1.554354.56529130412006.162-127-4137±1137±1143±1.542903448686914507.32  Detailed PhotosProduction WorkshopProduct ApplicationInternational ExperianceCertificationsOur Advantages1.Q: Are you manufacture or trade company?A:We are manufacture factory2.Q: How can I get the s
