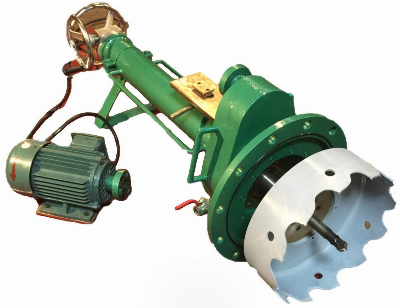

Ht600 Model Pn10, Pn16, Pn25 Electric Driving Hot Tapping Machine

Electric-Drive Hot Tappping Machine   Product Introduction :This machine is designed for hot tapping on the water or gas lines under pressure for the branch pipeline connection . It is suit for Ductile Iron Pipe, Carbon Steel Pipe and Plastic Pipe . And it is widely applied in water supply, natural gas supply,  oil and chemical industry . Product Features :List of Models : Model Range of Hot Tapping Size Drive Mode Feed Mode Feed Volume Working Stroke Spindle Speed Motor Power Motor Voltage Tapping Time   mm/inch     mm/r mm RPM Kw V min HT50 DN25-DN50 3/4''-2'' Manual Manual 1.5 240/350 / / / 10-20 HT100 DN50-DN100 2''-4'' Electric Manual 0.07-0.2 370 53 0.75 220 15-30 HT200 DN100-DN200 4''-8'' Electric Manual 0.07-0.2 500 40 1.5 220 15-30 HT200 DN50-DN200 2''-8'' Electric Manual 0.07-0.2 500 40 1.5 220 15-30 HT300 DN100-DN300 4''-12'' Electric Manual 0.07-0.2 600 40 1.5 220/380 15-30 HT400 DN250-DN400 10''-16'' Electric Manual 0.07-0.15 600/800 30 1.5 380 15-40 HT600 DN500-DN600 20''-24'' Electric Manual/Automatic 0.3 900 30 4 380 30-60 HT800 DN500-DN800 20''-32'' Electric Manual/Automatic 0.3 1000 20 7.5 380 40-80 HT1000 DN500-DN1000 20''-40'' Electric Manual/Automatic 0.3 1250 20 7.5 380 120-180 HT1600 DN1000-DN1600 40''-64'' Electric Manual/Automatic 0.15-4 1450/2000 12 15 380 120-180 Model HT600 Tapping Range 20'' - 24'' Working Pressure ≤ 25 bar Working Temperature ≤ 200ºC Pipe Medium Water,Oil,Gas,Steam... Pipe Material Steel, Iron, Plastic, Concrete Pipe.. Spindle Transimission Electric Feed Mode Manual Connection with Valve Flange Connection Flange Standard BS PN10/16 ASME#150 Stroke 900mm Spindle Speed 30 r/min Motor Voltage 3 phase, 4 Kw, 380V Feed Volume 0.3 mm/r Size (mm) 1700x670x750 mm Weight (kgs) 270 Kgs Motor Protection Overload shutoff automatic Note: 1. Range of Hot Tapping Size :  1/2'' to 64''        2. Range of Working Pressure : PN10, PN16, PN25 Hot Tapping Operation Procedure    Project Cases : Hot Tapping Fitting :Note:  Also we supply the above hot tapping fittings Factory View : Anqing Great Wall Pipeline Company have over 10 years experience of the production and development ofElectric and Manual Hot Tapping machine for water, oil and gas lines with the pressure rating of PN10, PN16, PN25,the range of hot tapping sizes from DN25mm up to DN1600mm.our hot tapping machine are exported to the countries and regions including Singapore, Malaysia, Indonesia,Taiwan, UAE, Chile, Argentina, Brazil and etc. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
