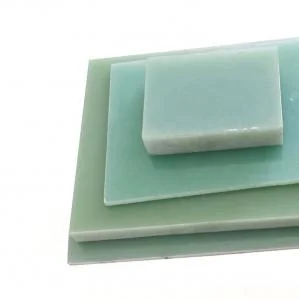

G11 F-Class Epoxy Resin Fiberglass Cloth Lamianted Panel

NEMA G-11  G11Epoxy Glass Cloth Laminate Sheet REF: IEC6089-3-2 EPGC203 / NEMA G-11 certs to MIL-24768/3 GEB / Hgw-2372.4. DIN-7735                                        1.FEATURESVery low hygrometric susceptibilityGood dielectric propertiesHigh resistance to frictionSmall losses at high frequencyHigh resistance to flame ( V-0 )  2.APPLICATIONSVery convenient for equipment on high frequencies and generally for all elements having to bear strong dynamic stresses with good resistance to fatigue. It can be used at fairly high temperatures ( more than 155 OC ).  3.TECHNICAL PARAMETER ItemUnitStandard ValueTest ValueFlexural strength perpendicular to laminations A: Under normal conditions E-1/150: Under 150±5ºC  MPa ≥ 340 ≥ 170  402 195  Notch Impact strength parallel to lamination (charpy)  kJ/m2  ≥ 37  49Dielectric strength perpendicular to lamination (in oil 90±2ºC) 2.0mm in thickness kV/mm  ≥ 11.8 15.8  Breakdown voltage parallel to lamination (in oil 90±2ºC) kV ≥ 45  >60  50 Hz dielectric coefficient   -≤ 5.5  4.20  50 Hz loss factor /50 Hz -≤ 0.040.023Water absorption rate D-24/23, 1.6mm in thickness % ≤0.25  0.18  Insulation resistance impregnated in water, D-24/23  Ω≥ 5.0×1010 3.2×1011  Bonding strength    N ≥6500 7880 Tg (TMA )ºC --150Density g/cm3 1.70-1.95 1.90/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
