Roll Forming Machinery Floor Tile Making Roof Panel

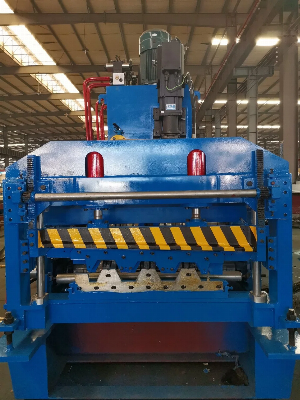

YX50-334-1000 Cold Roll Forming Machine for Floor Decking   General Parameter1ItemParameters2Model NO.YX50-334-10003MaterialPre-painted galvanized sheet4Thickness0.8-1.2 mm5Yield Strength350 MPa6Feed Width1219 mm7Effective width1000 mm8Roll Stages26 Stages9Shafts Diameterф95 mm10Main Motor Power18.5 KW11Hydraulic Group Power7.5 KW12Max. Line Speed Of Roll FormerApprox.15 m/min13Electric StandardAccording to local voltage    Machine Components A.6 Ton*1250mm Hydraulic un-coiler Hydraulic system expand coil inner hole, Pump motor: 3KWFrequency Inverter to regulate turning speed, Motor: 3KWLink-connect expanding systemLoad capacity = Max.6TonsCoil Inner-diameter= 510±30mm, Coil width = Max.1250mmAutomatic stopping device with limited switch as assistance to control stop/star rotation  B.Entry Hydraulic Pre-shearing Device    Working thickness:up to 1.5mm    Smart cut control     C.Cold Rolling Mills    Feeding section with guide;   Gear/Sprocket driving;26 stages to form   Wall-plate-frame Design   Rollers manufactured from 45#, hard chrome coating    Shafts Diameter=ф75mm, Precision Machined   Main motor =18.5*2KW,Frequency speed control   Max line speed of roll former: Approx.15m/min   Protection mesh cover above the roll form to avoid the hands going itC.   Hydraulic Cutting Device        Stop to cut, Post cut, No Blanking cut        Cutting tool material : Cr12Mov, Heat treatment;        Pump motor =7.5KWD.   PLC Control System       Control the quantity & cutting length automatically;       Combined with: PLC, Touch Screen, Inverter (SIEMENS), Encoder (Omron), REMOTE CONTROL etc       Cut-to-length tolerance≤±2 mm       Control Voltage 24VE. Product Rack   Un-powered, 3 units     After-Sale Service  Installation:In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.  Terms Of Trade  1.Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.2.Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
