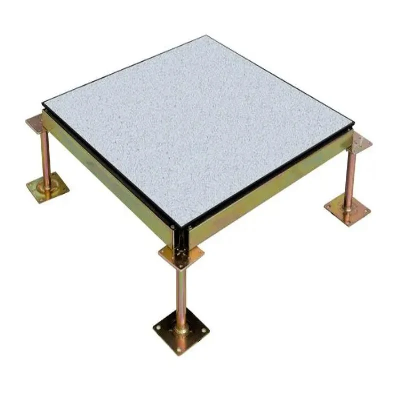

Durable Raised Access Floor for Data Center

 Product Description Structure:The upper steel plate is SPCC cold-rolled steel,The lower steel plate is ST14 stretch steel plate. after automatic spot welding,non-phosphorus rust prevention technology and epoxy resin coated.The panel is infilled with cement.Each panel has 4 corner lock holes.Feature:---All stell structure , excellent loading capacity and fire-resistance.---Adjustable height is 35mm-200mm,50mm is convenient for outlet    box to check and replace network lline or cable line---Easy to install .Long life of usage.soundproof---PVC or carpet can be laied over the pane---Dimension accuracy with great interchangeabilityApplication:OA600 Net Floor is widely used in 5A Intelligent building and office building .Old office buliding can be remoulding and upgrading with lowest cost.  Type:OYN-800Size:600*600*33mmconcentrated load ≥800 lb,3560 N>>>Supportsprovided with corner locks and the adjustable four-corner supports,as well as one bracket supports four panel>>>FeaturesThe holes of corner locks on the molded floor can essure the stableness of flooring system>>>ConfigurationThe final flooring can employ square carpets,rolled carpets or PVC veneers and solid wood blocks>>>PermanceStrong in carrying capacity good in fireproof and corrosion resistance compression molding forminggood in interchangeability,easy to assembel and fast to repair  Product Parameters                                       OA raised floor parametersTypeDimensions(mm)Concentrated LoadUniform LoadImpact LoadOYN440600*600*33mm440 LB / 1960 N2148 LB / 9720 N100 LB/ 45 KGOYN670600*600*33mm670 LB / 2950 N2808 LB / 12500 N150 LB/ 68 KGOYN800600*600*33mm800 LB / 3560 N3596 LB / 16100N180LB/ 81 KGOYN1000600*600*33mm1000LB / 4450 N5215 LB / 23000 N210LB/ 95KG  TEST REPORT                                                 OA   Rsised  FLOOR  TEST REPORT  (No:852)SUBJECT:Testing of Anti-static Raised Floor by OUYANA Co.,LtdProduct Name:Anti-static Raised Access FloorModel:      HDG.600*600*35mm(OYN-670)Date:       Mar.7th,2022Quantity of samples: 1PS Panel + 1PS HPL  TestingEnvironmentTemperature:    25ºCRelative:        45%RHTest result summary table for panel  TEST  ITEMSSPECIFICATION TEST RUSELTS  2.Mechanical propertiesPoint Load:=300N(30Kg)Deflection:  Centre: =0mmCentre of edge: =0mmPermanent Deflection:  Centre: =0mmCentre of edge: =0mmPoint Load:=2950N(300Kg)Deflection:  Centre: ≤1.5mmCentre of edge: ≤1.6mmPermanent Deflection:  Centre: ≤1.5mmCentre of edge: ≤1.6mmUniform Distributed Load:=12500N/M2  Deflection:≤0.05mmPermanent Deflection:≤0.05mmUltimate load: 8850N Rolling load:10times/10000times 2946N/2356N     3.combustion performanceGrade:A1         Company Profile OYANA Computer Room Equipment Co.,Ltd is mainly producing OA network raised floor,Anti-static raised access floor. Calcium Sulphate Access floor. we have got ISO9001 , ISO14001 certificate.It is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous supplier in foreign market.so we  would like to share with you.OYANA Company makes a contribution for products especially on OA raised floor used in the  intelligent  modern  building and meeting rooms,5A office buildingsPay attention,Pay attention,we can OEM  Certifications /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
