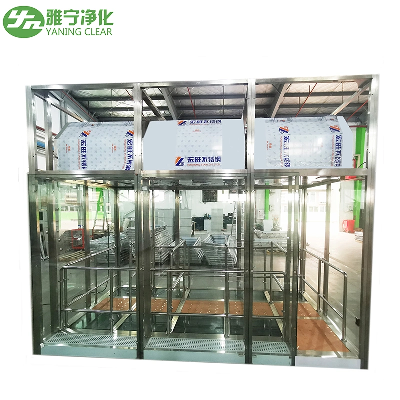

Yaning Cleamroom Automatic Person Pass Through Air Shower Room

 Yaning Cleamroom Automatic Person Pass through Air Shower RoomProduct Description1. Full Toughened Glass Wall Air Shower Descriptionwork process:1.The non-clean area enters the air shower room,induces air shower, and leaves the air shower room to the clean area. Do not enter the air showerfrom the clean area.2. Blowing function: a sensor is arranged at the bottom of the inlet of the air shower to control the blowing and lighting of the first area, therunning time is 45s; two sensors are arranged at the top of the middle to control the second and third areas respectively. Blowing and lighting,running time 45s.3. Set the sensor at the top of the air shower outlet to control the opening of the glass sliding door and the anti-pinch sensor at the bottom ofthe air shower outlet. 4. The air curtain is installed at the top of the air shower exit. When the automatic door is opened, the air curtain starts to work, and theautomatic door closes and the air curtain stops.5. An emergency stop switch is provided at the outside of the air shower channel to cut off the power in an emergency.2.Automatic Door Air Showers features: Air showers are specialized enclosed antechambers which are incorporated as entryways of cleanrooms and other controlled environments to reduce particle contamination. Air showers utilize high-pressure, HEPA- or ULPA-filtered air to remove dust, fibrous lint and other contaminants from personnel or object surfaces. The forceful cleansing of surfaces prior to entering clean environments reduces the number of airborne particulates introduced. In the original air shower room on the basis of the abolition of the door closer, the implementation of the two doors fan linkage lock, infrared induction automatic door opening system, reduce contact and pollution sources, to further enhance the level of purification process, from the real sense to achieve full automation. - Automatic Sliding Door Air Shower Clean Room operation procedure: 1,15 cm away from the sensor, the sensor lights the green light, the door automatically open.2,People enter the air shower room, the door automatically closed.3,Double doors closed, automatic induction blowing.4,After blowing, people leave from the door, the door automatically closed. Product Parameters• Material: Powder-Coated Steel, Stainless Steel• Width: 52", 58", 64", 70", 90"• Depth: 44", 56", 60", 72", 84", 96", 120", 144", 180", 240"• Height: 120"• Number of Blowers: 1 Blower, 2 Blowers, 3 Blowers, 4 Blowers• Approx. Occupancy: 1, 2, 3 - 6, 3, 4, 5, 7 Model YN-AS1290/1 YN-AS1290/1 YN-AS1290/1 Air Shower Tunnel External Dimension 1290×1000×2130 1290×1000×2130 1290×2000×2130 1400×5000×2130 Internal Work Zone 790×860×1980 790×860×1980 790×1860×1980 900×5000×1980 Suitable Number 1-2 person 1-2person 2-4person Tunnel type Noise Level(dB)
