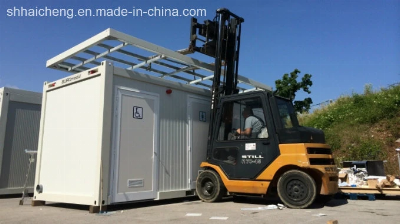

Product Description You can use the prefab container toilet with forklift holeseparately or combine it with a modular container, office containers, material containers, mobile home...If drainage is not available at your installation site, we have suitable solutions with integrated waste tanks in toilet containers. 1 ) Size Length: 6055mm; Width: 2435mm; Height: 2791mm; Clear height indoor: 5860*2240*2500mm. 2) Components Long beam: 3mm galvanized; Short beam: 3mm galvanized; Column: 3mm galvanized; Wall panel: 70mm glass wool sandwich board; Roof panel: 70mm PU and glass wool sandwich board; Secondary beam: -shaped galvanized steel iron; Floor panel: 18mm plywood panel+18mm lmagnesium floor board or 18mm cement- fiber +1.8mm PVC; Door: Steel door, 870mmx2040mm; Window: PVC Sliding window with Rolling shutter, 1100mmx800mm; Electronics, water supply and drainage: According to the local law. 3) Technical parameter Roof load: 0.5KN/sqm (can reinforce the structure as required), Wind speeddesigning wind speed: 180km/h (Chinese standard), Seismic resistance: Magnitudes 8. 2. Packing details: 1)Flat packing, 4 units in one package, all knocked down, ship in SOC(shipper owned containers); 2)Flat packing, 7 units loaded into one 40'HQ. 3. Delivery: 1)SOC delivery; 2)Container loading, flat pack loaded into 40'HQ. 4. Installation instruction: We will provide you full instruction manual and excellent after sale services. For special projects, we can also send our engineer to help you move in with satisfaction. 5. Our advantages: Company competitive edge 1) Qualification: CE(DIN18800), ISO9001, BV, SGS; 2) Long time oversea project experience; 3) High Construction Efficiency (2 worker in one day for one unit); 4) 4S sales and service network, buy a house just like to buy a car; Brand Name: Haicheng Products advantage 1) Integrated base and roof, PU injected, excellent strength and tightness; 2) 0.426mm color steel sheet for sandwich wall panel, strong and beautiful; 3) Durable, beautiful, economic and environmental; 4) Long life time (Max. 10 years); 5) Easy to transport and assemble (Can load 7 units into one 40'HQ). ItemDescriptionStructureFlat pack@ Cold rolled steel structure with corner casts and forklift pockets 90x256x2050mm@ Available size, 8ft x 10ft, 8ft x 16ft, 8ft x 20ft, 8ft x 24ft, 8ft x 30ft, 10ft x 20ftWall panelExterior Cladding0.5mm thick corrugated or flat galvanized coated steel sheetInsulation60mm, 70mm, 80mm, 100mmInternal Cladding@ Laminated E1 - Emission Valued 9mm thick chipboard;@ White 12.7mm thickness Glass - Magnesium Board MgO;@ Parallel compressive strength = 18.1 MPa;@ Formaldehyde emission ≤ 0.1mg/100g;@ Water expansion ratio = 0.2%;@ Low smoke and non-flammable;@ Flammability class A1 - non-combustible;@ Smoke density: low smoke emission;@ 0.5mm thick galvanized and coated color steel sheet.floorFloor Steel frame@ 3mm thick cold rolled & welded steel profiles;@ Insulation Thickness: 10mm PU / 100mm mineral wool;@ Subfloor: 0.5mm thick, galvanized steel sheet;@ Floor Board: 18mm magnesium(water resistant v 100);@ The board complies with the emission value E 1;@ Parallel compressive strength = 35.7 MPa;@ Formaldehyde emission ≤ 0.4mg/100g;@ 1.5mm thick vinyl sheet;@ Flammability class B1 - hardly combustible;@ Smoke density class Q1 - low smoke emission;@ Welded seams. Fiber cement floor@ Density: 1.26kg/m 3 K= 0.18W/m*k;@ Waterproof, moisture content = 0.13%/m 2@ Formaldehyde emission = 0.2 mg/ 100g;@ Deformation, parallel to the bending elasticity = 6055MPa 18mm thick marine grade floor@ Parallel compressive strength = 88MPa;@ Formaldehyde emission ≤ 0.4mg/100g;@ Deformation, parallel to the bending elasticity = 8030MPa;@ Waterproof, moisture content = 6.0%/m 2 InsulationMineral wool@ Density : 40kg/m 3 - 120 kg/m 3 (120kg/m3 = 0.25w/m 2 *k)@ Flammability class A - non-combustible;@ Smoke density class Q1 - low smoke emission;@ Certification : CE & GL;@ Temperature adjustment - 50c & 120c. K= 0.044W/m*k;@ Water Ratio ≤ 0.5%;@ Hygroscopic coefficient ≤ 5% & ≥ 98%. PU Foam@ Density : 30kg/m 3 - 40 kg/m 3 (40kg/m 3 = 0.044W/m 2 *k)@ Flammability class B1 - non-combustible;@ Smoke density class - low smoke emission;@ Compressive strength > 150MPa;@ Water vapor absorption ≤ 6.0ng(Pa*m*s );@ Hygroscopic coefficient ≤ 4%. Glass wool@ Density : 16kg/m 3 - 24kg/m 3@ Flammability class A - non-combustible;@ Smoke density classQ1 - low smoke emission;@ Coefficient ≤ 4% roofRoof Steel Frame4mm thick cold rolled & welded steel profilesRoof Cover0.5mm thick galvanized sheet & double folded in the roof middle; Insulation Thickn
