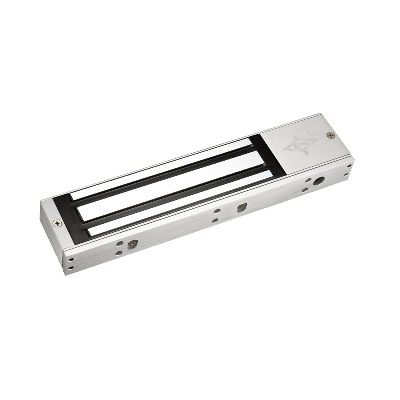

Single Door Electro Magnetic Lock 280kg

Holding force 600 lbs (280kg) Lock size 250x53x27mm Armature plate 158x43x11mm Working voltage DC12v, option 24v Working current 12v/430mA, 24v/215mA Feature feedback (NO, NC, COM) LED YES Opening unlock when power off Temperature tolerance -10 to 55°C (14 to 131°F) Surface temperature current temperature ±20% (when power is on) Weight 2.0 KG Supported doors wooden, glass, metal & fireproof doors Certifications CE, FCC Service life more than 200,000 times Magnetic locks (commonly called maglocks) are a more and more popular choice among security installers for being simple to install, durable, reliable and very resistant. A large electro-magnet is mounted on the door frame and the corresponding counterplated is mounted on the door. When the magnet is powered and the door is closed, the counterplate is held fast to the magnet. One must unlock the maglock to both enter and leave. In order to satisfy all customers' needs, we offers a wide range of electromagnetic locks in different sizes, voltages, mounting and holding forces.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
