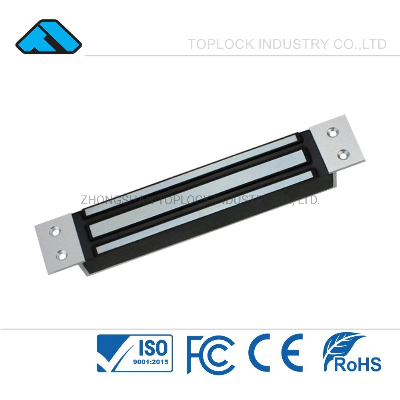

Mortise 180kgf (350lbs) Electric Electromagnetic Electronic Door Lock

Specification:1.Holding Force180kg (300Lbs)2.Lock Status IndicatorNo Led3.Lock Status SensorsNo Sensor4.Operating VoltageDC12V/ DC24V5.Current ConsumptionDC12V-420mA±5%, DC24V -210mA±5%6.Optional FunctionsNo Delay Timer7.Surface Finish (Magnet)Zinc plating8.Surface Finish (Armature Plate)Zinc plating9.Operating Temp -10~+55°C(14-131F)10.Suitable ForWooden & Aluminum & Glass & Fireproof &Metal11.Magnets Dimensions190Lx32Wx21H (mm)12.Armature Plate Dimensions130Lx33Wx11.5H (mm)13.CE-markYes14.Rohs-markYes  TL180A single door magnetic lock with embedded installation, specially used to normal glass door, wooden door, metal door, fire doors, small doors, inward door, frameless glass door, narrow door. Hoisting design,saves time and power for installation. Special Anti-residual magnetic design makes automatic access control safer and more convenient.Function:1.Best choice for safety system, intercom building system, CCTV system2.Embedded installation, passed 300lbs super static linear tension tests3.Anti-residual magnetic design,keep constant tension4.Built-in reverse current protection device (MOV), performance stability ,safety is higher5.Electromagnetic suction work completely, no mechanical failure6.Shell with high strength alloy material, anode hardening treatmentProduction:Factory General View:Certificates:Packaging:Neutral package, or color box (with MOQ requirement).Leadtime:Small quantity within 1-5 working days after receipt of remittance;Large quantity within 20~30 working days after receipt of remittance;OEM/ODM depending on the lead time of design confirmation and mold fabrication.Aftersales Service: 1. For the non-anthropogenic factors of product quality issues, Toplock offers one year warranty for all products, including the electric rim lock, electromagnetic lock, electric motorise lock, electric bolt lock and electric strike, exit button, bracket, access control and power supply. The customers should be responsible for the material cost and the maintain fees if the product is damaged under other circustances. 2. During warranty period, our factory will offer the free replacement. 3. Technical support will be always provided as one of the after-sales services.FAQ: Q1: Why should we trust your QC system? Or why choose you? 1. We have more than 15-year experience in electric lock manufacturing, with mature R&D, production, sales and after-sales service systems.      2. Quality control starst from the sample phase to production phase. The quality control is excuted in every aspect, such as the material inspection / diecasting / polishing / plating / assembling/ packing etc.. This guarantees the product quality and saves the customer's after-sales cost. Q2: Could you help me with development, design or customization of products?A: Yes, sure. We are capable of proivding OEM/OEM service for our customers to gain their unique markets. Q3: What is your MOQ?For custom-made logo and brand packages, MOQ is 1000 sets; For Toplock's own neutral packages, MOQ is 10~100 sets. Q4: What's the payment term?T/T, Cash or LC. Q5: What's the price term?EXW/FOB/CNF/CIF/FCA, depending on the customer's requirement. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
