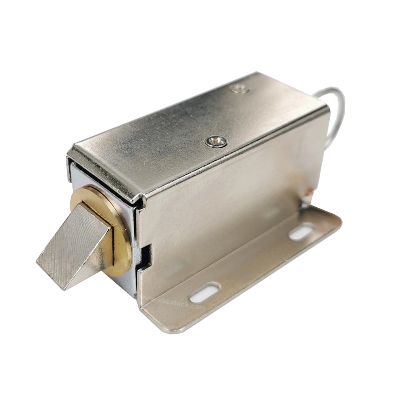

24VDC Solenoid Electric Bolt Lock with Override

Solenoid Electric Bolt Lock with Override (MA1206L) is a small metal constructed lock specially designed for keyless entry of cabinets, drawers and lockers. The bolt is 360 degree reversible and with pull ring for manual override. The Solenoid Electric Bolt Lock with Override is compatible with any access control system or standalone cabinet locking system. It is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.Features360 degree reversible boltNickel-plated steel housingSurface-mounted compact electric lockWith pull ring for manual overrideAccepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,Fitted to steel furniture, mail box and drawers etc.SpecificationOperation Voltage24VDC ±10%Power Consumption24V DC   2000mAOperation ModeFail LockedLength of tongue10mmMaximum power on timeMaximum 5 secondsCycle Rating600,000Working Temperature-25ºC ~ +80ºCDimension91mm*40mm*28mmWeight150gProtection ClassIP20Order Particular  Options for customizationVoltage Current Latch DirectionCableConnector6V12VDC24VDC48V400mA800mA1000mA2000mASlide UpSlide Down TwistedRVVFlat cableMolexKF2510PHRJ11Applications:The solenoid cabinet lock is ideal for various applications as following:Electronic lockersFiling cabinetsUtility cabinets and drawersMuseum display casesPharmaceutical cabinets and drawersElectronic letter box and delivery Locker/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
