2023 Electro-Hydraulic Servo Channel Letter Bending Machine Price for Sale

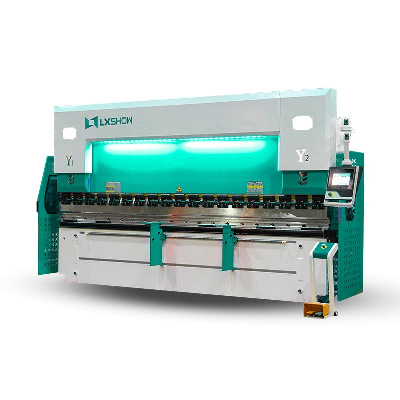

  Electro-hydraulic Servo 6+1 CNC Bending Machine Hydraulic Press Brake The frame is composed of oil tank, bracket, workbench, left and right wall panel and slide block, which ensures the structural strength of the frame. After welding, it is processed on the large floor boring and milling machine after stress removal. In particular, the slide block adopts vertical processing technology (because the working state of the slider is vertical) so as to ensure the straightness of the upper die mounting surface of the slider in the working state. The machine has higher labor productivity and higher accuracy of bending metal plate, using different shapes of the upper and lower mold, can be bent into various shapes of the workpiece, the slider stroke can be a sheet material for a bending forming, after multiple bending can be obtained more complex shape of the workpiece, when equipped with the corresponding equipment, can also be used for punching.    Product Parameters  Main Technical ParametersMachine modelWE67K-70T/2000Nominal Pressure700 kNBending length2000mmDistance between columns1490 mmThroat Depth230 mmMAX Pressure of system22MpaSlide running conditionMoving Journey/stroke 200mmfast down speed 180mm/s return speed 110mm/s working speed 10mm/s Slide running precisionPosition accuracy ±0.03mm Repeat Position accuracy ±0.02mm Main motor powerPower 5.5 KW rotate speed 1440r/min Operate system Model DE15 System Oil Pump Model USA sunny Bending precisionangle ±30' straightness ±0.7mm/mVoltage220/380/420/660 V Tech Info1)Tonnage=8*1.68*stainless Steel thickness*plate Width2)Tonnage=8*carbon steel plate thickness*plate width         Product DetailsControl System:Delem DA66T  1  2D touch graphic programming2  3D product graphic simulation display3  Complete Windows application package4  Compatible with Delem modular structure systemProduct Shape Structure1 Use UG (finite element) analysis method, computer aided optimization design, beautiful appearance. 2 The machine adopts steel plate welding structure, with enough strength and stiffness, hydraulic transmission to ensure that the work will not cause serious overload accident due to the change of plate thickness or the improper selection of the die "V" groove. In addition, the machine has the characteristics of stable work, easy operation, low noise, safe and reliable.  Hydraulic System1  Adopt the most advanced full closed-loop electro-hydraulic servo synchronous control system; 2 Hydraulic system complete set imported from Germany ARGO Company; 3 The sealing parts in the cylinder are international famous brands with strong sealing and long service life. 4 The hydraulic system has overload overflow safety protection; 5 Oil pump high pressure filter blocking alarm; 6 Clear and intuitive display of oil level height; Table Deflection Compensation System1 The compensation system is the control of the table to add convex numerical control shaft, can obtain accurate deflection compensation on the full length of the table. 2 The deflection compensation table can be maintenance-free during the life of the machine tool. Compared with the compensation method of hydraulic cylinder, it has incomparable advantages. 3 Can form effective "reverse complement" at both ends of the compensation curveElectrical Control System1 Electrical components imported from abroad or joint venture products, in line with international standards, safe and reliable, long life, anti-interference ability Strong force; 2 Movable button station (including foot switch), convenient operation, emergency stop function; 3 The working system should have the necessary limit protection measures, once abnormal should be able to detect through the system and immediately alarm; Sample ShowFactory* About Jinan Lingxiu Laser Equipment Co., Ltd.is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures. Customer Visit  After Sales Service  FAQ  Q: Do you have CE document and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.Q: If we are interested in your machine, how do we choose?A:Could you tell me your materials:cs or ss and their thickness? And the biggest bending width? Then i will confirm the machine model for you. Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period. Q: Do you have after sales support?A: Yes, we are happy t
