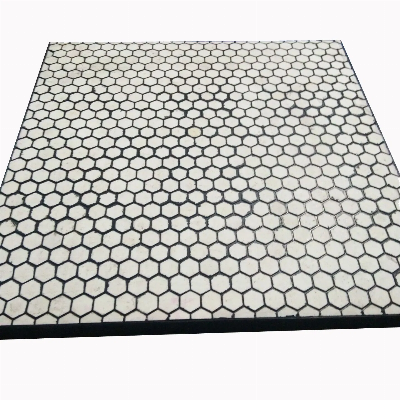

Ceramic rubber liner for transfer chute mining operation material handingAdvantage:We are a factory producing ceramic wear liners.Proven qualityStandard and custom-made wear liners to fit your facility.Excellent bonding between ceramic and rubber. Extensive experience ensures high quality and consistency.Custom ceramic rubber wear liners are available as per drawing and sample.Strict QC/QA system, testing report will be issued to each purchase order.Transfer chute rubber ceramic rubber liner.Rubber liner with steel backing plate and studs.Ceramic rubber liner on-site. Rubber Lining installation: bolts on steel backing plate are for easily installation, numbers of bolts are as request, 1 bolt, 2 bolts, 4 bolts are all available. Rubber specification: - Density: 0.98 g/cm³ - Shore Hardness: 40A - Tensile strength: 25 MPa - Elongation at break: 840% - Abrasion: 90mm³@ 10N Selection Chart:Size (mm)Thickness of ceramic (mm)Thickness of rubber (mm)Thickness of steel backing plateTotal thickness (mm)300x300x36Φ21x219636300x300x50Φ31x3113650250x250x36Φ21x219636250x250x50Φ31x3113650250x250x1817.5x17.5x85619 Rubber ceramic wear plate package:Standard export packing, plywood pallet, no wood, no need fumigationPallet size: 1000*1000*620mm, Pallet weight: 1.2 tonsPallet quantity for each 20GP container: 20~24 palletsAbout Us: Jiaozuo Debon Technology CO, LTD is specialized in designing and manufacturing rubber and polyurethane products. Main products include: various kinds of rubber sheets, rubber lagging, rubber ceramic lagging, skirt board, rubber ceramic wear liner,polyurethane belt scraper secondary belt cleaners urethane scraper,impact bar, etc.Debon is a manufacturer with 106 employee, including 35 engineers, and with 23 years experience of producing and developing.Company is certified to ISO 9001: 2008 Qaulity management system, and rubber lagging products were certified to"SAFETY CERTIFICATE OF APPROVAL FOR MINING PRODUCTS.Our products have been exported to Australia, USA, UK, France, Chile,Russia, etc. Related ProductsFurther information, just contact Mona Chueng. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
